Burndy Burndy YA39A1


Description

Industry Description

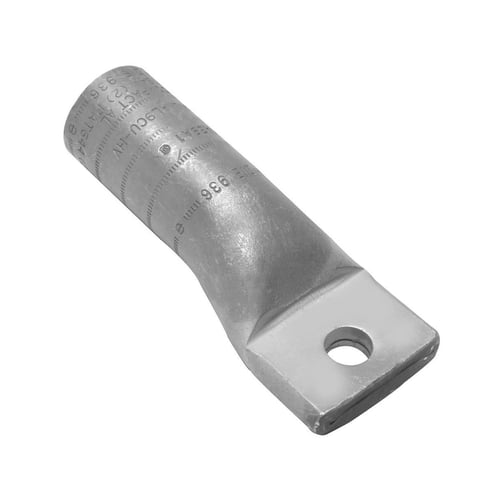

Aluminum Compression Lug, 1 Hole w/o Inspection Window, 750 kcmil, 1/2" Stud, Al/Cu Rated, Tin Plated.

Modified Industry Description

AL COMPR LUG 1 HOLE 750 AWG 1/2 STUD

AD Description

BURNDY® HYLUG YA39A1 YA-A 1-Hole Dual Rated Non-Insulated Compression Lug, 700 to 750 kcmil Aluminum/Copper Conductor, Die Code: 936, 1/2 in Stud, Aluminum

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY® oxide inhibiting compound.

Specifications

Application
For Aluminum And Copper Conductors
Brand Name
Burndy
Cable_Size
700/750 KCMIL, 900 KCMIL Compact AL
Color
Yellow
Conductor Material
Aluminum - Copper
Conductor Size
700 to 750
Country of Origin
US
Insulation
Uninsulated
Material
Aluminum
Number_Of_Holes
1
Package_Quantity
1
Special Features

  • 0.63 in hole center to end, 0.71 in hole center to barrel
  • 700 to 750 kcmil stranded conductor
  • Color coded end caps inserted in barrel end
  • Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps
  • Electro tin plated provides durable long lasting corrosion resistance
  • Factory prefilled with PENETROX® oxide inhibiting compound
  • Internally beveled barrel
  • Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection
  • Provides a quality electrical dual connection
  • Provides easy cable insertion
  • Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection
  • Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
  • Straight tongue angle
  • They are designed for heavy duty applications to 35 kV
  • Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil
  • Used for Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers
  • Without inspection window
  • YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps
Standard
UL486B Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
Stud_Size
1/2
Sub_Brand
Burndy
Temperature_Rating
90
Type
1-Hole Dual Rated Non-Insulated
Voltage Rating
600 VAC to 35 kV
