3M 3M 10008
3M 10008
Kirby Risk #: 2135657
UPC: 05400712816, 054007128168, 00054007128168
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
They are designed to connect copper conductors. Each connector is electro-tin plated to resist electrolytic corrosion. They are installed using standard industry tooling. Chamfered ends and an integral center cable stop ensure simplicity and ease of conductor insertion.
Modified Industry Description
Copper Standard Barrel Connector
AD Description

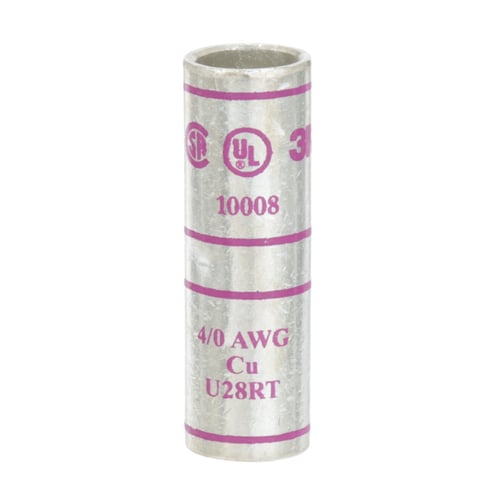

Scotchlok™ 054007-12816 10000 Non-Insulated Standard Barrel Compression Connector, 4/0 AWG Stranded Copper Conductor, 2.13 in L, Copper Plated
Vendor Description
3M™ Scotchlok™ connectors and tools are engineered to work together to achieve consistently superior performance in the field.
Specifications
| Application |
Copper Conductor Only
|
|---|---|
| Brand Name |
3M
|
| Color |
Purple
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
4/0 AWG
|
| Country of Origin |
CL
|
| Finish |
Electro-Tin Plated
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) COPPER STANDARD BARREL CONNECTOR 10008, VIOLET, 4/0 AWG, 10 PER CASE
|
| Material |
Copper Plated
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Temperature_Rating |
105 DEG C
|
| Type |
Non-Insulated Standard Barrel
|
| Voltage Rating |
Up to 35 kVAC
|
