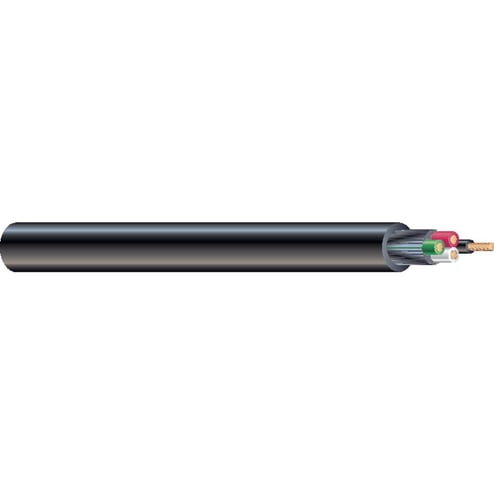

Southwire Southwire SJEOOW/SJTOOW-10/4-BLACK-250
Southwire SJEOOW/SJTOOW-10/4-BLACK-250
Kirby Risk #: 2132766
UPC: 03288604089, 032886040894, 00032886040894
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
10-104 CU 4/C WHITE/BLACK/GREEN/RED SJEOOW (TPE/SJTOOW) BLACK 105C 300V POLY 250 FT
Modified Industry Description
10 4C SJEOOW/SJTOOW BLACK CORD
AD Description
Seoprene® 55062801 Type SJEOOW Portable Cord, 300 VAC, (4) 10 AWG Bare Stranded Copper Conductor, 250 ft Spool L
Vendor Description
Southwire type SJEOOW flexible Cords are manufactured using sizes 18 AWG though 10 AWG bare flexible stranded class K copper conductors per ASTM B-174, and heat, moisture and oil resistant 105degC color-coded TPE insulation. The insulated conductors are cabled with non-wicking polypropylene fillers, with a tissue-paper separator wrapped around the assembly to promote easier removal of the jacket. A heat, moisture and oil resistant flexible TPE jacket is extruded over the assembly to complete the construction. Some sizes may be subject to minimum order quantity.
Specifications
| Amperage Rating |
25
|
|---|---|
| Application |
FLEXCORD
|
| Brand Name |
Southwire
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Type |
Bare Stranded Copper
|
| Conductor Size |
10 AWG
|
| Construction |
TPE JACKET
|
| Core |
10
|
| Country of Origin |
USA
|
| Functions |
N/A
|
| Insulation_Material |
TPE
|
| Jacket_Material |
TPE
|
| Number Of Conductors |
4
|
| Number_Of_Outlets |
N/A
|
| Outside_Diameter |
0.633
|
| Package_Quantity |
250
|
| Plug_Type |
N/A
|
| Special Features |
|
| Standard |
UL62
|
| Sub_Brand |
Southwire
|
| Type |
SJEOOW
|
| Voltage Rating |
300
|
