Panduit Panduit LCC6-14JAW-L

Name: Panduit LCC6-14JAW-L
Brand: Panduit
SKU: 2127851
Price: 14.68 USD
Availability: InStock

Panduit LCC6-14JAW-L

Kirby Risk #: 2127851

UPC: 07498364833, 074983648337, 30074983648338, 00074983648337

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

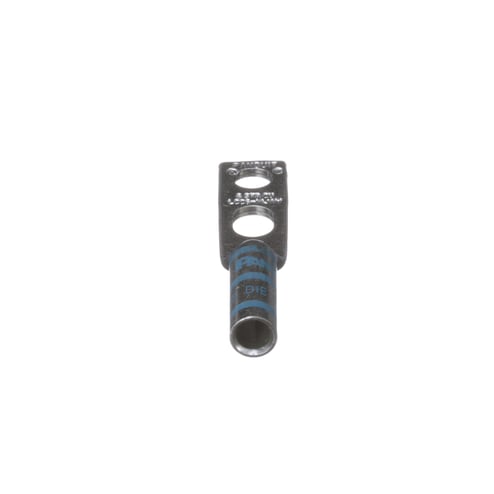

Two-hole, long barrel lug with window, #6 AWG wire, 1/4 stud hole, .50 Â— .63 hole spacing.

Modified Industry Description

6 AWG 1/4 IN 2 HOLE LONG BARREL CU COMP LUG

AD Description

Panduit® Pan-Lug™ LCC6-14JAW-L LCC-W 2-Hole Compression Lug, 6 AWG Copper Conductor, Die Code: P24, 1/4 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Blue
Conductor Material	Copper
Conductor Size	6
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	1 1/8
Number_Of_Holes	2
Package_Quantity	1
Size	#6 Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection For use with stranded copper conductors Inspection window to visually assure full conductor insertion Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Stud_Size	1/4
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
