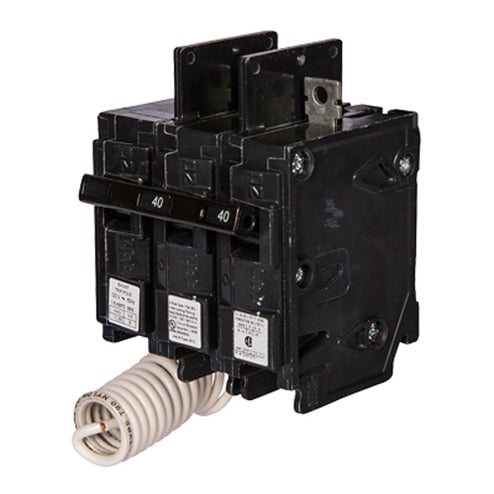

Siemens Siemens BQ2B02000S07
Siemens BQ2B02000S07
Kirby Risk #: 2124293
UPC: 78364331385, 783643313859, 00783643313859
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs - Type BQ, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQ. Rated 120/240V (020A) (AIR 10 kA). Special features 24VAC Shunt Trip. Note Load side lugs are included.
AD Description
Siemens BQ2B02000S07 Low Voltage Molded Case Circuit Breaker With Insta Wire, 120/240 VAC, 20 A, 10 kA, 2 Poles, Thermal Magnetic/Shunt Trip
Vendor Description
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Specifications
| Actuator |
N/A
|
|---|---|
| Amperage Rating |
20
|
| Application |
Electrical Distribution
|
| Connection |
BOLT-ON
|
| Country of Origin |
MX
|
| Dimensions |
6 in L x 4 in W x 4 in H
|
| Enclosure |
N/A
|
| Environmental_Conditions |
N/A
|
| Frame |
BQ Series
|
| Frequency_Rating |
N/A
|
| Interrupt_Rating |
10
|
| Length1 |
6.9000
|
| Material |
N/A
|
| Mounting_Type |
Bolt-On
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
N/A
|
| Special Features |
|
| Standard |
ULLISTED/CSA/NOMCERTIFIED
|
| Sub_Brand |
N/A
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
120/240
|
