3M 3M M10-10FX
3M M10-10FX
Kirby Risk #: 2119018
UPC: 05112858687, 051128586877, 00051128586877
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

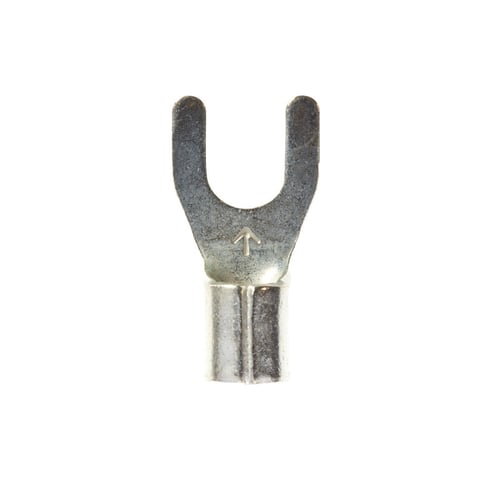

3M™ Scotchlok™ Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
Non-Insulated Brazed Seam Fork
AD Description
Scotchlok™ 051128-58687 Standard Fork Terminal, 12 to 10 AWG Conductor, 0.73 in L, Brazed Barrel, ETP Copper, Yellow
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Yellow
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
USA
|
| Label_Description |
FORK NON-INSULATED, 50/BOTTLE
|
| Material |
ETP Copper
|
| Operating_Voltage |
50 per bottle
|
| Package_Quantity |
50
|
| Special Features |
|
| Standard |
UL and CSA
|
| Stud_Size |
#10
|
| Sub_Brand |
3M
|
| Terminal_Size |
12 - 10 AWG
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
