3M 3M 2123D*


Description

Industry Description

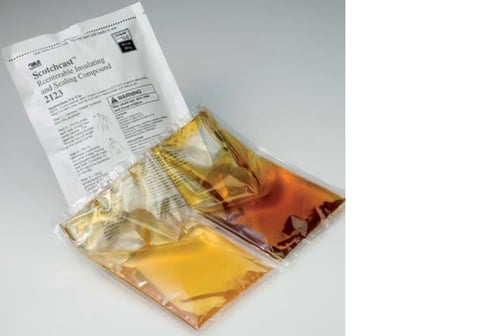

3M™ Scotchcast™ Electrical Resin 2123 is a soft, 2 part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.

Modified Industry Description

Reenterable Electrical Insulating

Specifications

Application
reenterable
Brand Name
3M
Color
Amber/Clear/Transparent
Country of Origin
US
Label_Description
3M(TM) SCOTCHCAST(TM) REENTERABLE ELECTRICAL INSULATING RESIN 2123D (21.2 OZ)
Material
Polybutadiene
Package_Quantity
10
Special Features

  • 0 shore A hardness
  • 0.2 % moisture absorption, 1:1 mixing ratio, pale yellow part A, amber part B
  • 0.6/1 kV voltage rating
  • 10.7 psi tensile strength
  • 2 years shelf life
  • 240 V/mil dielectric strength
  • 300% elongation
  • 78-R series used in these kits
  • A soft, two part polybutadiene resin encapsulant designed especially for reenterable splice protection
  • Available in two part closed mixing pouch for easy mixing and pouring
  • Bonds to all most cable jackets, bonds to itself, re-enterable
  • Class B temperature range
  • Container bag size D
  • Flexible, excellent multi-purpose moisture sealing resin
  • Gel time 62 min at 73 deg F
  • Part a -60 to 75 % soybean oil, 15 to 30 % butadiene-maleic anhydride copolymer, 1 to 10 % epoxidized soybean oil, 0 to 5 % BHT, 0 to 1 % maleic anhydride, < 0.3 toluene, part B-65 to 80 % hydrotreated heavy naphthenic petroleum distillates, 15 to 3 % 1,3-butadiene, homopolymer, hydroxyterminated, 0 to 10 % methyldidecylamine
  • Polybutadiene material
  • Room temperature cure, low viscosity
Sub_Brand
3M
Temperature_Rating
-20 to 90
Type
Re-Enterable
