O-Z/Gedney O-Z/Gedney LB150CG


Description

Industry Description

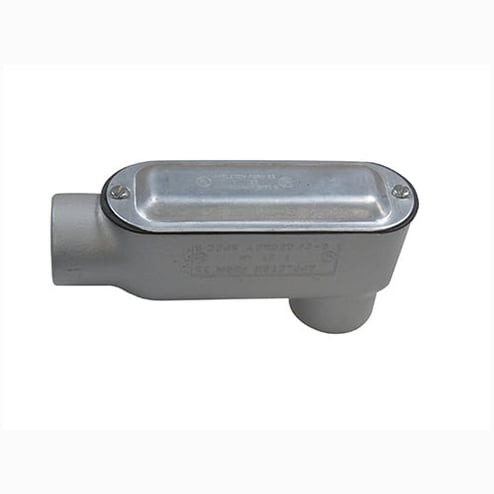

OZ-Gedney Type LB Conduit Body, Cover And Gasket Assembly, 1-1/2 IN Hub, Length: 8-1/4 IN, 2-5/8 IN Width, Conduit Body: Malleable Iron, Cover: Type BS Steel Zinc Electroplated, Gasket: Type SGN Neoprene, Finish: Zinc Electroplated With Aluminum

Modified Industry Description

1-1/2 IN LB BDY/CVR/GSKT ASSY

Specifications

Application
For Rigid Conduit And IMC
Connection
Tapered FNPT
Country of Origin
MX
Dimensions
8-1/4 in L x 2-5/8 in W
Enclosure
NEMA FB-1/FB-2.10
Finish
Zinc Electroplated/Aluminum Enamel
Length1
8.7000
Material
Malleable Iron
Mounting_Type
Surface
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
  • Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Internal volume and maximum wire capacity clearly marked on castings
  • Malleable iron suitable for use in concrete
  • Raintight when an Appleton™ cover and gasket are installed
  • Raintight when used with gasketed covers
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Tapered threaded hubs (NPT)
Standard
Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563; NEMA : FB-1, FB-2.10
Type
Type LB
