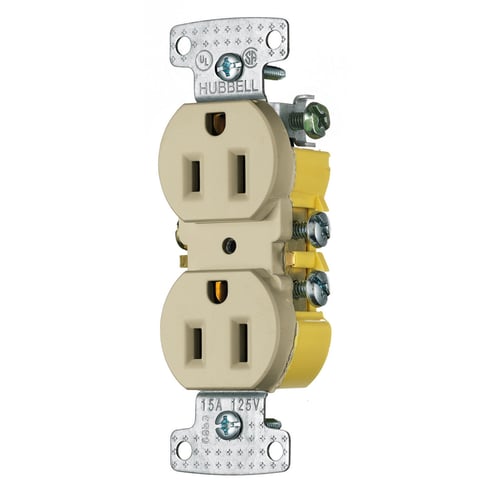

Hubbell Hubbell RR15I


Description

Industry Description

Hubbell Wiring Device Kellems, TradeSelect, Straight Blade Devices,Receptacles, Residential Grade, Duplex, 15A125V, 2-Pole 3-WireGrounding, 5-15R, Push Terminals, Ivory

Modified Industry Description

15A 125V - IVORY DUPLEX RECEPTACLE, RESIDENTIAL GRADE, 2 POLE, 3 WIRE

AD Description

Wiring Device-Kellems tradeSELECT® RR15I Duplex Self-Grounding Standard Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Specifications

Amperage Rating
15
Application
Residential Receptacles
Brand Name
Hubbell
Color
Ivory
Connection
Push and Side Wire
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Residential
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Configuration
5-15R
NEMA_Rating
5-15R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • Break-off tabs for switched receptacle applications
  • Compression plates maximize holding power to provide a stronger, more secure connection
  • Eliminates the need to loop the wire
  • External back wire clamp for fast and easy installation of 15 and 20 A branch circuits in residential applications
  • Multiple drive Slot/Phillips®/Robertson head screws
  • Multiple drive slot/Phillips/Robertson head screw
  • Smooth indented face appearance
  • Terminate up to 8 wires
  • Tough thermoplastic ultrasonically welded cover and base
  • Tough thermoplastic with ultrasonically welded cover and base
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Duplex
Voltage Rating
125
Wattage
1,875
