Panduit Pan-Net Panduit Pan-Net CJ5E88TGWH


Description

Industry Description

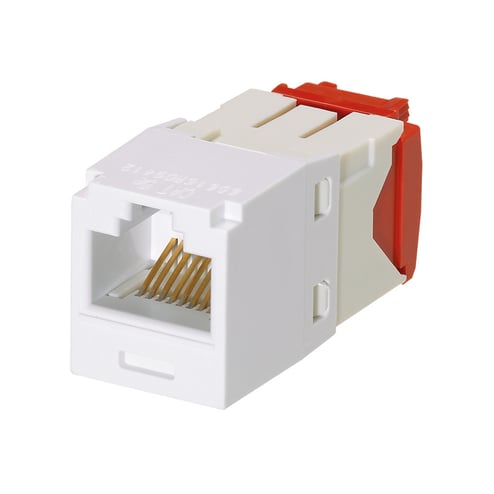

Category 5e, RJ45, 8-position, 8-wire universal jack module. White.

Modified Industry Description

CATEGORY 5E WHITE MINI COM MODULE, TG STYLE

AD Description

Panduit® TX5e™ CJ5E88TGWH 8-Position 8-Wire RJ45 Universal TG Style UTP Jack Module, Cat5e/Mini-Com® Module, Surface Mount, 1 Port, ABS/Plastic, White

Specifications

Application
Unshielded
Brand Name
Panduit Pan-Net
Cable_Entry
T568A/T568B
Color
White
Country of Origin
CRI
Depth
1.5
Material
ABS/Plastic
Model
Bus (jack)
Number Of Conductors
8
Number_Of_Ports
1
Slot_Capacity
1
Special Features

  • Can be clearly identified with optional labels and icons for port identification
  • Color specific keys with positive and negative keying features mechanically and visually distinguish connections to prevent unintentional mating with unlike keyed or non-keyed modular plugs, offering network design flexibility, versatility, accommodating discrete networks for enhanced security
  • Conductor retention slots simplify jack module termination
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Controls cable bend radius for long term installed performance
  • Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Integrated shuttered door keeps out dust and debris of unmated RJ45 jack modules
  • Marked with quality control number for future traceability
  • Provides a simple and secure method to control access to data ports while not in use
  • Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
  • UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Position 8-Wire RJ45 Universal TG Style
Width_2
7.3000
Width_3
7.4000
