Appleton Appleton STB-250SR


Description

Industry Description

Liquidtight Flexible Conduit Connector and Wire Mesh, Trade Size 2-1/2 Inch, Connector Type Straight, Connector Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Throat Type Insulated, Mesh Material Stainless Steel, Standard Package 1, Approval UL 514B, CSA C22.2, Used On Liquidtight Flexible Metal Conduit, Applicable Standard NEMA FB-1, Application Commercial, Size 3.94 Inch Dia, Thread Length 1.06 Inch

Modified Industry Description

WIRE MESH GRIP & ST CONNECTORS

AD Description

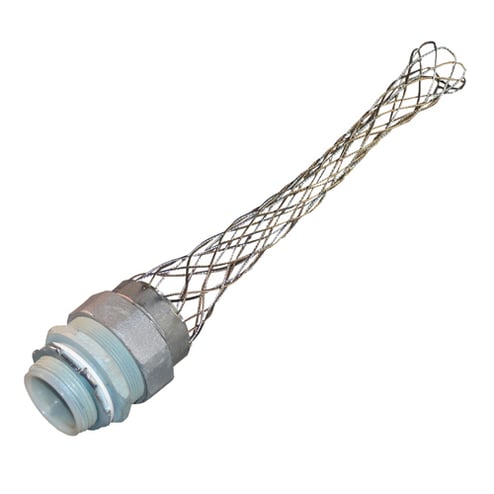

Appleton® STB-250SR Insulated Throat Oiltight Liquidtight Raintight Liquidtight Conduit Connector With Stainless Steel Wire Mesh Strain Relief, 2-1/2 in Trade, 2.84 to 2.88 in Cable Openings, For Use With Liquidtight Flexible Metallic Conduit

Vendor Description

These connectors are used with liquidtight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations. They include wire mesh strain relief to ensure integrity of connections subjected to flexure, vibration, motion or strain.

Specifications

Brand Name
Appleton
Country of Origin
MX
Finish
Triple Coated
Material
Malleable Iron
Special Features

  • Chromate/epoxy powder coated/zinc electroplated finish
  • Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Full, machined tapered threads (NPT)
  • Stainless steel wire mesh prevents pull out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection
  • Suitable for wet locations
  • Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
Trade_Size
2-1/2
Type
Insulated Throat Oiltight Liquidtight Raintight
