Thomas & Betts Thomas & Betts AFS-1


Description

Industry Description

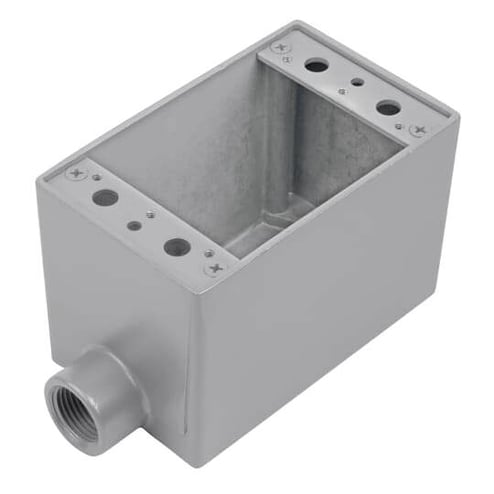

1/2 Inch Shallow 1 Gang Device Box, Die Cast Aluminum, Dead End, 1 Hole, Raintight When Used with Appropriate Cover

Modified Industry Description

1/2 IN,1G-FS BOX,ALUM,D-END,1 HOLE

AD Description

T&B® AFS-1 Type FS Dead End Shallow Style Device Box, Die Cast Aluminum, 21.6 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4-9/16 in H x 2-13/16 in W x 2-1/16 in D

Specifications

Application
Industrial grade device boxes and raintight covers protect wiring devices, switches, electronic components, and terminal blocks in dry, damp and wet locations.
Brand Name
Thomas & Betts
Cable_Entry
1
Country of Origin
IN
Cubic_Capacity
21.6
Finish
Aluminum Lacquered
Hub_Size
1/2
Material
Die Cast Aluminum
Mounting_Type
Surface
Number_Of_Gangs
1
Number_Of_Outlets
1
Size
1/2
Special Features

  • (1) end hub cable entry
  • Aluminum boxes can be used with steel rigid conduit
  • Boxes external hub design provides increased wiring room
  • Clean cover edges provide good gasket sealing
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Copper-free aluminum, stainless steel cover springs and hinge pins provide increased corrosion-resistance
  • Covers ship complete with gaskets and screws
  • Die cast construction, boxes with securely fastened mounting plates and industrial designed covers combine to produce a rugged protective enclosure for devices on industrial and OEM applications
  • Industrial grade FS/FD device boxes and raintight covers protect wiring devices, switches, electronic components, and terminal blocks in dry, damp and wet locations
  • Junction for branch conduit
  • Precision NPT threaded hubs allow trouble-free field installation for rigid or IMC conduit
  • Raintight when used with appropriate cover
  • Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
Standard
E 28688
Sub_Brand
Thomas & Betts
Type
Type FS Dead End Shallow Style
Width_2
6.1000
Width_3
10.9000
