Crouse-Hinds Crouse-Hinds EAJL36


Description

Industry Description

1 NPT L IRON CLASS I GR ABCD ROUND BASE 3 3/16 COVER

Modified Industry Description

1 NPT L IRON CL I GR ABCD ROUND

AD Description

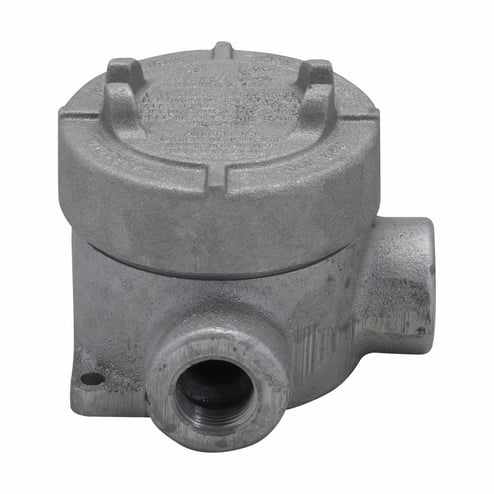

Crouse-Hinds Condulet® EAJL36 Type L Dust-Ignitionproof Explosionproof Raintight Round Shape Conduit Outlet Box With Cover, 1 in NPT, 3-3/16 in Cover Opening, 20.5 cu-in, Electro-Galvanized

Vendor Description

EATONs Crouse-Hinds Business is the worlds leading provider of electrical and instrumentation products for harsh and hazardous environments. Our products perform to the highest standard of safety and reliability, keeping people safe and plants running. The more demanding the environment, the likelier you are to find our products at the very center of operations.

Specifications

Application
Rigid Conduit
Brand Name
Crouse-Hinds
Cable_Entry
(1) Side, (1) Down
Country of Origin
US
Cubic_Capacity
20.5 Cubic In
Finish
Electro-Galvanized
Material
Feraloy® Iron Alloy
Size
1 in NPT
Special Features

  • Act as mounting outlets for fixtures
  • Act as pull and splice boxes
  • Act as sealing fittings
  • Change conduit direction
  • External cover threads ON body protecting conductors from damage during pulling
  • Flat overlapping threaded covers furnished with boxes
  • Interconnect lengths of conduit
  • Internal green ground screw #10 standard in all boxes
  • Internally threaded cover openings for additional wiring room
  • No pinching of conductors during cover installation
  • Provide access to conductors for maintenance and future system changes
  • Six different hub arrangements
  • Smooth integral hub bushing protects conductor insulation when pulling
  • Taper threaded hubs to provide ground continuity
Standard
UL 886, CSA C22.2
Sub_Brand
Eaton Crouse-Hinds
Type
Type L Dust-Ignitionproof Explosionproof Raintight Round Shape
Width_2
5.1300
