NSI NSi C-250
NSI C-250
Kirby Risk #: 2093306
UPC: 66238103759, 662381037596, 00662381037596
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Long Barrel TinnedCopperSplice250 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
#250 CU COMPRESSION SPLICE
AD Description

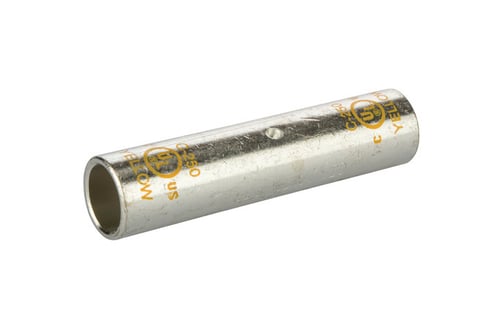

NSI C-250 Long Barrel Compression Splice, 250 kcmil Stranded Conductor, 3-1/4 in L, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Yellow
|
| Conductor Range |
250 MCM (STR)
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Number_Of_Poles |
1
|
| Package_Quantity |
1
|
| Size |
L=3.25 - OD=.750 - ID=.590
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Long Barrel - CU Splice
|
| Voltage Rating |
600
|
