TPI TPI H2920-096S-WH


Description

Industry Description

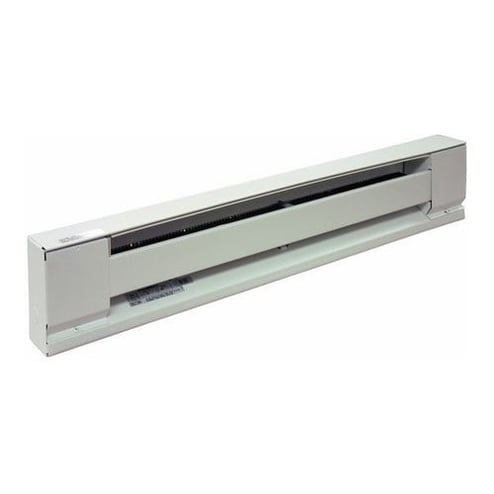

Electric Baseboard - Stainless Steel Element Convection Heater, 240/208 V, 1 PH, 8.3/7.2 AMP, Steel Housing Material, Wall Mounting, Dimensions- 96 Length X 2-1/2 Depth X 6 Height IN, 2000/1500 WTT, BTU Rating- 6826/5100, White

Modified Industry Description

2000/1500W 240/208V - 96 IN WHITE ELECTRIC BASEBOARD HEATER

Specifications

Amperage Rating
8.3 A, 7.2 A
Application
Indoor-Residential/Commercial/Some Industrial
Brand Name
TPI
Color
White
Country of Origin
US
DimensionsInches
96 Length X 2-1/2 Depth X 6 Height IN
Finish
painted
Housing_Material
Steel
Model
H2920-096SW
Mounting
Wall
Phase
1 PH
Power_Rating
2000/1500
Series
2900S
Special Features

  • A full length wireway provided along the back of the heater
  • Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
  • Optional in-built thermostats field installed in the junction box
  • Over temperature thermal limit extends entire length of heated area
  • Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
  • Stainless steel heating element and aluminum fins
Standard
ETLus Listed
Sub_Brand
TPI
Trade_Size
96
Type
1-Phase Standard
Voltage Rating
208/240
Wattage
1500/2000
