Panduit Panduit FSD76-10-D

Name: Panduit FSD76-10-D
Brand: Panduit
SKU: 2087205
Price: 0.20 USD
Availability: InStock

Panduit FSD76-10-D

Kirby Risk #: 2087205

UPC: 07498376249, 074983762491, 30074983762492, 00074983762491

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

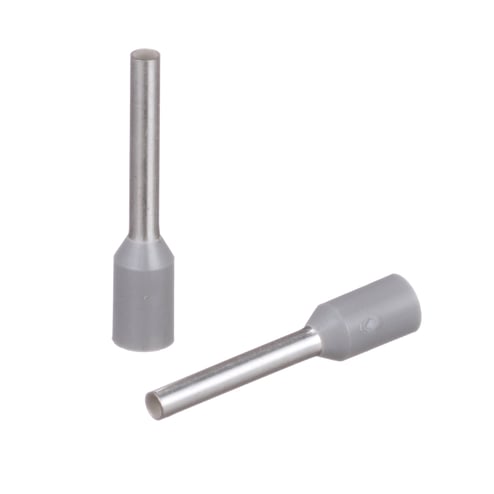

Polypropylene insulated ferrules single wire gray DIN end sleeve,18 AWG (.75mmÂ²), .39(10.0mm) pin length.

Modified Industry Description

INSULATED FERRULE, SINGLE WIRE, 20

AD Description

Panduit® FSD76-10-D Wire Ferrule With Sleeve, 18 AWG Stranded Conductor, 0.05 in ID x 0.39 in L Barrel

Brand Name	Panduit
Color	Gray
Conductor Size	18
Country of Origin	DEU
Finish	Tin Plated
Insulation	Polypropylene
Insulation_Material	Polypropylene
Material	Copper
Mounting	17/32
Package_Quantity	500.000
Special Features	Designed with a seamless barrel to contain loose wire strands for superior terminations Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Eases insertion of wire into terminal block Funnel entry for faster insertion and lower installed cost
Standard	DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Sub_Brand	Panduit
Type	Insulated single wire ferrules (DIN or French color code)
