Appleton Appleton TB27SA


Description

Industry Description

FM7 UNILETS Type TB Conduit Outlet Body, Hub Size: 3/4 IN, Form: 7, Length: 6-1/4 IN, Width: 1.88 IN, Height: 2.88 IN, Material: Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File

Modified Industry Description

3/4 FM7 BODY TYPE TB- ALUM

AD Description

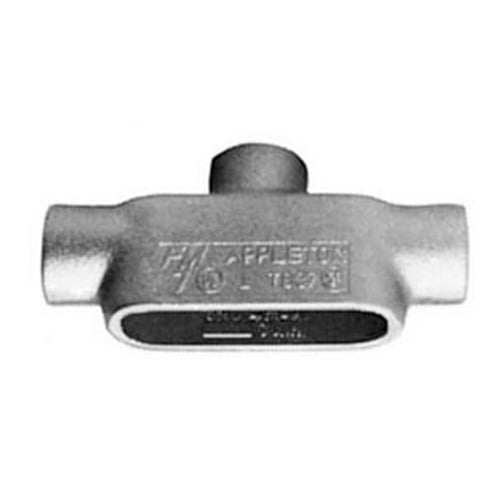

Appleton® UNILETS™ TB27SA Type TB Conduit Outlet Body, 3/4 in Hub, Form 7, 10 cu-in, Cast Aluminum, Epoxy Powder Coated

Vendor Description

Appleton® FM7™ Conduit Outlet Bodies are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Specifications

Application
For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Brand Name
Appleton
Configuration
TB
Connection
Tapered Female Threaded
Country of Origin
MX
Finish
Epoxy Powder Coated
Form
Form 7
Hub_Size
3/4
Material
Cast Aluminum
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
  • Cover screws and clips are captive to prevent loss
  • Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions
  • Fits flush and snug against flat surfaces for more stable installation
  • Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
  • Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
  • Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
  • Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
  • Smooth hub bushings and cover openings protect conductor insulation
  • Smooth hub openings allow easy conduit joining
  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
  • Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
Sub_Brand
Appleton
Trade_Size
3/4
Type
Type TB
