Appleton Appleton WRX75


Description

Industry Description

Features:Hub Size 3/4 IN, With Closure Plugs, Ground Screw And Mounting Lugs, Number Of Outlet:5, Material:Metal, Size:5.625 X 2IN, Color:Grey, Cubic Capacity:16.5CI

Modified Industry Description

ROUND OUTLET BOX, 5-3/4IN

AD Description

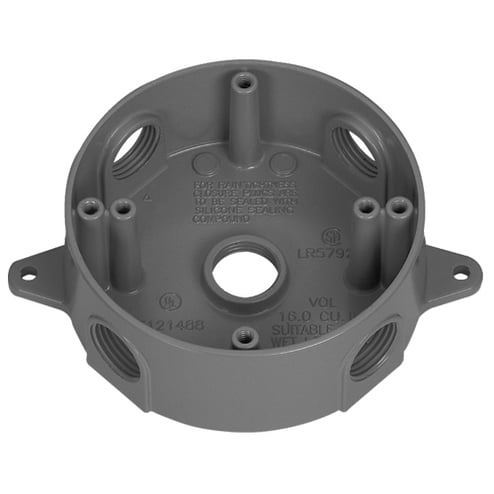

Appleton® ETP™ WRX75 Weatherproof Round Box, Die Cast Zinc, 16 cu-in, 5 Outlets, 5.51 in W x 1.62 in D

Specifications

Brand Name
Appleton
Color
Gray
Country of Origin
IN
Cubic_Capacity
16
Diameter
4.31
Finish
Powder Coated
Hub_Size
3/4
Knockouts
5
Material
Die Cast Zinc
Mounting_Type
Surface
Number_Of_Outlets
5
Shape
Round
Size
4.31 Dia
Special Features

  • Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
  • Continuous box and cover compression ensure complete sealing at the gasket to prevent entry of moisture
  • Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
  • Powder coating is applied for uniform cosmetic coating and weatherproof durability
  • Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture
  • Smooth, accurately tapped hubs prevent wire abrasion
Standard
UL Standard 514A; UL Listed E2527; Nema FB-1, OS-1; CSA Standard C22.2 No. 18.1, cUL Listed E2527
Sub_Brand
Appleton
Type
Round Weather Proof Outlet Box
