Leeson Leeson 140470.00


Description

Modified Industry Description

7.5HP..1765/1460RPM.213.DP.208-230/

AD Description

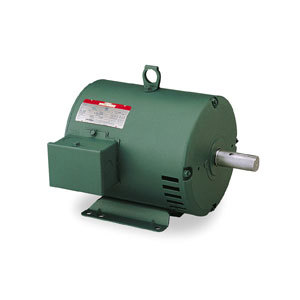

LEESON® WATTSaver® 140470 Rigid Base AC Motor, 7-1/2 hp, 208/230/460 VAC, 60 Hz, 3 ph, 213T Frame, 1765/1460 rpm, DP Enclosure

Vendor Description

The WATTSaver® e line of premium efficiency motors is LEESON® unique IRIS® voltage spike resistant insulation system, included at no extra cost. WATTSaver® e motorscarry a three year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPAct federally mandatedefficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON® NVLAP-Certified lab. Cast iron 170 series motors can be field modified for forced ventilation service to extend the inverter fed operating range and an encoder package is stocked for closed-loop vector inverter systems. These motors can be converted to IEEE841 compliant using the custom PDQ Program.

Specifications

Application
For use where exposure to water, dust and corrosives exists. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other insustrial applications
Brand Name
Leeson
Efficiency
91.0
Enclosure
DP
Frame
210
Horsepower
7 1/2
Mounting
Rigid
Phase
3
Power_Rating
5.60
Rotation
REV
RPM
1460/1760
Service_Factor
1.25
Special Features

  • 1 year warranty on standard efficient motors
  • 2 years warranty on EPAct efficient motors
  • 3 years warranty on premium efficiency models
  • Class B insulation systems, Class F 140 frame and higher
  • Nameplated for 50 Hz operation
  • Rolled steel and cast iron designs
  • Shielded ball bearings for direct coupled applications contact your local sales office for belted load applications
  • Standard, EPAct and premium efficient ratings
  • WATTSaver® e premium efficient motors
Voltage Rating
208-230/460 an 190/380
