Panduit Panduit FSD82-18-C
Panduit FSD82-18-C
Kirby Risk #: 2079769
UPC: 07498376266, 074983762668, 30074983762669, 00074983762668
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

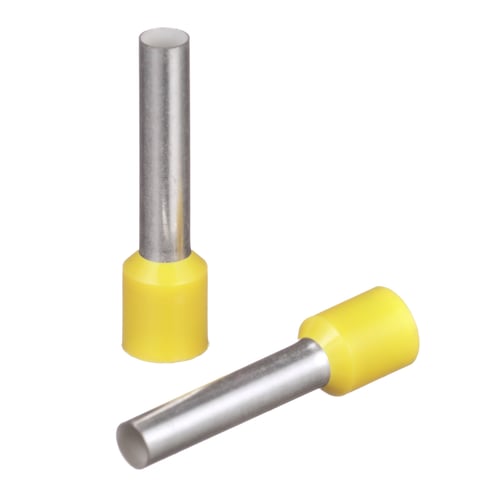

Polypropylene insulated ferrules single wire yellow DIN end sleeve, 10 AWG (6.0mm²), .71(18.0mm) pin length.
Modified Industry Description
10 AWG YELLOW INSULATED FERRULE 18MM LENGTH
AD Description
Panduit® Pan-Term® FSD82-18-C Type FSD DIN End Sleeve Insulated Single Wire Ferrule With Sleeve, 10 AWG Stranded Copper Conductor, 1.02 in L, Copper, Yellow
Vendor Description
Panduit® Pan-Term® ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Specifications
| Brand Name |
Panduit
|
|---|---|
| Color |
Yellow
|
| Conductor Size |
10
|
| Country of Origin |
DEU
|
| Finish |
Tin Plated
|
| Insulation |
Polypropylene
|
| Material |
Copper
|
| Mounting |
7/8
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
DIN 46228 Part 1, UL 486F Listed, UL 508A Certified
|
| Sub_Brand |
Panduit
|
| Type |
Type FSD DIN End Sleeve Insulated Single Wire
|
