Panduit Panduit LAM2SB600-38-1Y
Panduit LAM2SB600-38-1Y
Kirby Risk #: 2078277
UPC: 07498359285, 074983592852, 00074983592852
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description
Two-hole, aluminum, two barrel lug, dual barrel, type LAM2SB, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.
Modified Industry Description
600 - 2 AWG 3/8 IN 2 HOLE AL MECH DUAL LUG
AD Description

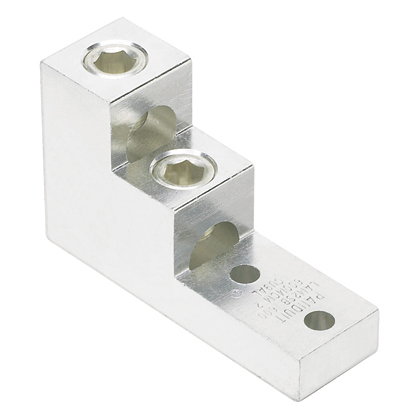

Panduit® LAM2SB600-38-1Y 2-Barrel Vertical Mechanical Lug, 2 AWG to 600 kcmil Stranded Aluminum/Copper Conductor, 3/8 in Stud, 2 Bolt Holes, Aluminum
Specifications
| Application |
Stranded Aluminum or Copper Code Conductor
|
|---|---|
| Brand Name |
Panduit
|
| Conductor_Range_Main_Primary |
#2 AWG Code - 600 kcmil Code
|
| Conductor Size |
2 AWG to 600 kcmil
|
| Country of Origin |
USA
|
| Finish |
Tin Plated
|
| Material |
Aluminum
|
| Number_Of_Holes |
2
|
| Number_Of_Mounting_Holes |
2
|
| Number_Of_Ports |
NA
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
|
| Stud_Size |
3/8
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
90
|
| Type |
2-Barrel Vertical
|
| Voltage Rating |
600
|
