Siemens Siemens 4AM6142-8DD40-0FA0


Description

Industry Description

>ISOLATION TRANSFORMER CIRCUIT TRANSFORMER 61558-2-1, -2-2, -2-4 CONTROL INSTALLATION SCREW EN CONNECTION TERMINALS SCREW/TAB TA/ISOKL 40 /B IP00 TYPE OF GR./SHIELD WNG. II0 /0 F(HZ) 50...60 VECTOR ISEC(A) 6,96-13,91 USEC(V) 2X115 440-415-400-380-230-208 UPRI(V) 550-525-500-480-460- PN/PN(S6)(KVA) 1,6 /7,3 TRANSFORMERSITAS PHASES 1

AD Description

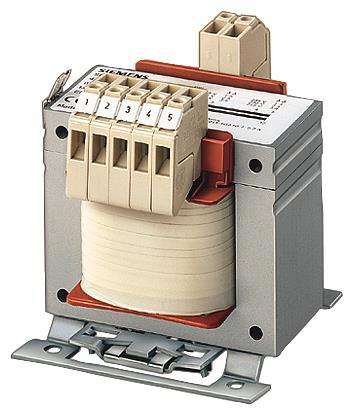

Siemens 4AM6142-8DD40-0FA0 Isolation Transformer, 208/550 VAC Primary, 115 VAC Secondary, 1600 VA, 50/60 Hz, 1 Phase

Specifications

Country of Origin
CZ
Dimensions
0.164 m H x 0.176 m W x 0.138 m D
Frequency_Rating
50/60
Length1
14.9700
Mounting_Type
Threaded
Phase
1
Power_Rating
1600
Special Features

  • 2.1% relative short-circuit voltage
  • 208/230/380/400/415/440/460/480/500/525/550 VAC rated secondary voltage
  • 550/525/500/480/460/440/415/400/380/230/208 VAC primary volt
  • 7300 VA short-term vector power
  • High short time rating of the SIRIUS transformers lower transformer rated power for a large number of contactors
  • Ii0 manner of switching for transformers
Temperature_Rating
40
