NSI NSi SPM-7L
NSI SPM-7L
Kirby Risk #: 2073718
UPC: 66238102106, 662381021069, 00662381021069
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

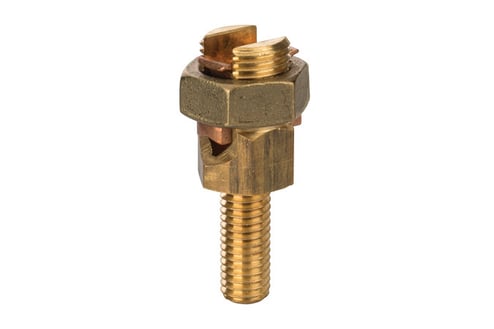

Service Post Connector - One Wire Type 2/0 AWG Service Post Connectors is used for connecting one or two conductors. Made from high copper content hard-drawn rod. Lay-in feature makes them excellent for continuous loop grounding and bonding. Used to ground to bar or plate. Suitable for direct burial in earth or concrete.
Modified Industry Description
#2/0 SERVICE POST CONN
AD Description
NSI SPM-7L 1-Wire Service Post Connector, 1 to 2/0 AWG Solid/Stranded Conductor, Copper
Specifications
| Application |
Wire Termination
|
|---|---|
| Brand Name |
NSi
|
| Color |
Copper
|
| Conductor Size |
1 SOL - 2/0 STR
|
| Country of Origin |
USA
|
| Finish |
Copper
|
| Material |
Copper
|
| Number_Of_Poles |
1
|
| Package_Quantity |
1
|
| Size |
Stud=1/2 X 13-1 1/4 - HeX Nut=7/8 X 14
|
| Special Features |
|
| Standard |
UL486B
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Service Post Connectors
|
| Voltage Rating |
600
|
| Wire_Type |
Class A & B
|
