Crouse-Hinds Crouse-Hinds WSR6352


Description

Industry Description

60 AMP 3 WIRE 4 POLE ARKTITE FUS INTERLOCK RECEPTACLE DISCONNECT SWITCH CONDUIT SIZE 1 1/4

Modified Industry Description

600V-60A SW

AD Description

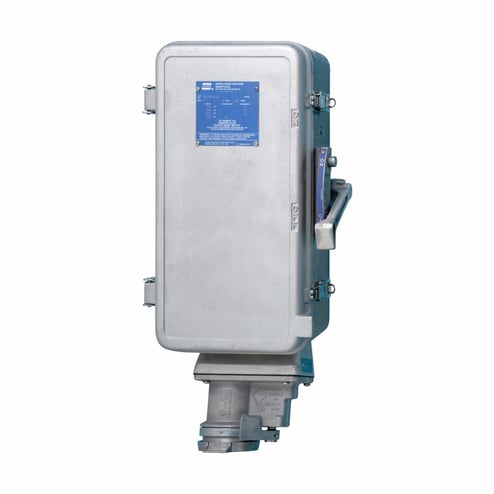

Crouse-Hinds Arktite® WSR6352 Grounding Style 2 Fusible Raintight Watertight Interlocked Receptacle With Enclosed Disconnect Switch, 240/600 VAC, 250 VDC, 60 A, 4 Poles, 3 Wires, Natural

Specifications

Application
Male Plug/Receptacle
Brand Name
Crouse-Hinds
Country of Origin
US
Material
Sheet Steel Enclosure and Operating Handle, Stainless Steel Other Exterior Part, Brass Contact, Copper-Free Aluminum Housing
Number_Of_Poles
4
Size
11-3/4 In Width X 7-1/4 In Depth X 28-11/16 In Height
Special Features

  • 15 hp at 240 VAC, 30 hp at 480 VAC, 50 hp at 600 VAC
  • Corrosion resistant
  • In addition, a unique hinge arrangement has been devised to allow the door of the unit to be padlocked
  • Mounting lugs may be rotated 90 deg or moved to the vertical centerline portion for pole mounting
  • Side hinged covers are retained in a closed position by compression spring draw-pull catches, which permit the opening or closing of the cover without tools
  • The switch operating handle may be padlocked in the "on" or "off" position, thereby preventing unauthorized operation of the switch and/or opening of the enclosure
  • Up to three padlocks may be used
Standard
UL 98, CUL
Sub_Brand
Eaton Crouse-Hinds
Type
Interlocked, Enclosed Disconnect Switch, Fusible
Voltage Rating
240/600//250
