Ocal Ocal LB28-G1


Description

Industry Description

PVC Coated Conduit Body, LB Shape, Form 8, Size 3/4 Inch/21 Metric, Iron, Dark Gray

Modified Industry Description

3/4 IN PVC COATED LB CONDUIT BODY FORM 8 DARK GRAY

AD Description

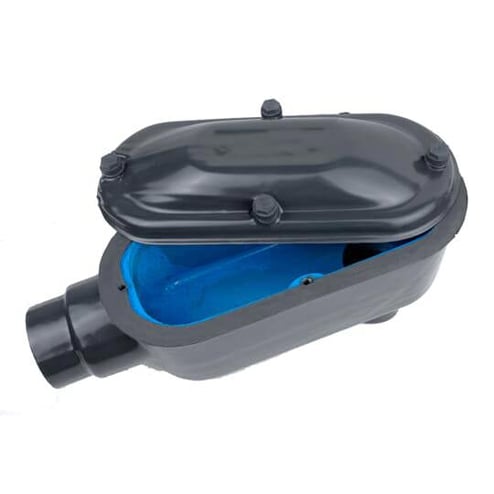

Ocal® OCAL-BLUE® LB28-G1 Type LB Conduit Body With Cover, 3/4 in Hub, Form 8 Form, 8 cu-in Capacity, Iron, PVC Coated

Vendor Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

Specifications

Application
Act as pull outlets for conductors being installed
Brand Name
Ocal
Color
Dark Gray
Configuration
LB
Country of Origin
US
Finish
PVC Coated
Form
8
Hub_Size
3/4ch/21mm
Material
PVC Coated
Special Features

  • A minimum of 0.04 in PVC coating is bonded to the exterior
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Connect conduit sections
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
  • Make 90 deg bends in conduit runs
  • Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
  • Ocal® Pressure sealing sleeves on all threaded hubs
  • Provide for access to conductors for maintenance and future system changes
  • Provide openings for making splices and taps in conductors
  • Provide taps for branch conduit runs
  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
  • The flat back also keeps the body more stable during installation, requiring fewer conduit straps
Standard
UL E2969, CSA
Sub_Brand
Ocal
Trade_Size
3/4
Type
Form 8 Conduit Body
Width_2
7.5000
