The E150 product line consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers, and Molded-Case Switches rated up to 150 Amps and 600 Volts AC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs. All TEB, TED, THED breakers suitable for reverse feed. 60/75 C rating through 100 amperes, 75 C rating above 100 amperes. 3 POLE 600VAC 70A BREAKER

AD Description

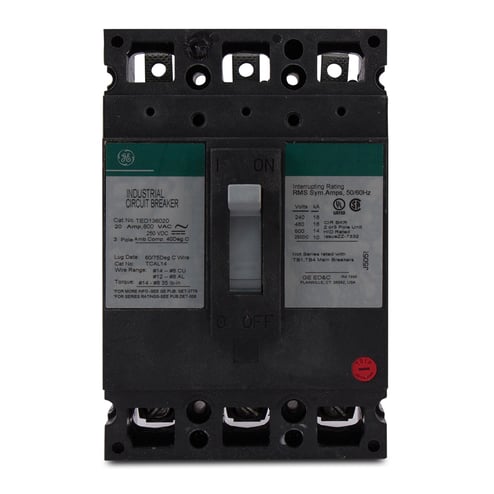

GE THED136070 Type THED Core E High Tier Molded Case Circuit Breaker With Copper/Aluminum Load Lug, 600 VAC, 70 A, 18 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip

Vendor Description

The E150 product line consists of thermal magnetic circuit breakers, magnetic circuit breakers and molded case switches rated up to 150 A and 600 VAC. catalog numbers include the complete breaker or switch. the WL catalog number suffix indicates that the devices come with copper aluminum line and load lugs.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
9.0000
Special Features

  • 10 kA at 125 VDC, 10 kA at 250 VDC, 25 kA at 277 VAC, 25 kA at 480 VAC, 65 kA at 120/240 VAC, 65 kA at 240 VAC interrupt rating
  • Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
  • Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
  • Molded case is molded from high mechanical and high dielectric strength engineered plastic
  • Multiple types to fit in your application
  • Proven reliability
  • Provide cost effective solutions
  • Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
  • Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
  • Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
  • Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON position
  • UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
  • VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
Sub_Brand
GE Industrial Solution
Type
Circuit Breakers
