Thomas & Betts Thomas & Betts 2IH7S2-2


Description

Industry Description

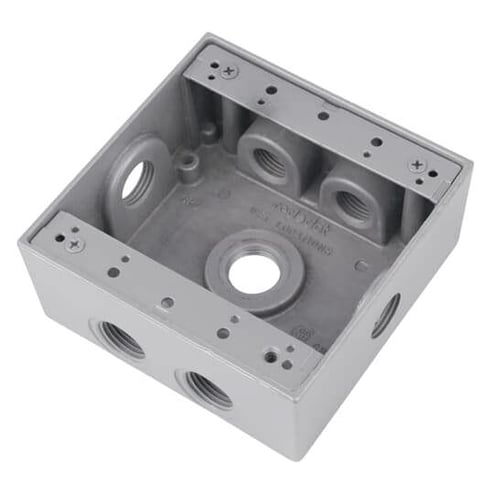

Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 7 Outlets (2-Sides) with 2 on Top and Bottom and 1 on Both Sides, and Back, Pack of 10

Modified Industry Description

2 GANG UNIVERSAL WEATHERPROOF BOX SEVEN 3/4 KO'S SILVER

AD Description

Red Dot® 2IH7S2-2 Universal Weatherproof Box, Die Cast Aluminum, 31.8 cu-in Capacity, 2 Gangs, 7 Outlets, 4-9/16 in L x 4-5/8 in W x 2-1/16 in D

Vendor Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

Specifications

Application
Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Brand Name
Thomas & Betts
Cable_Entry
7
Color
Silver
Country of Origin
IN
Cubic_Capacity
32
Finish
Powder Coated
Hub_Size
3/4
Material
Die Cast Aluminum
Number_Of_Gangs
2
Number_Of_Outlets
7
Special Features

  • Accessible wiring chamber provides a convenient location to maintain or change a system pull conductors and make splices
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion-resistance
  • Clean cover edges provide good gasket sealing
  • Clear UL and cubic content markings speed approval by inspectors
  • Convenient mounting lugs for a variety of mounting methods
  • Die cast construction and industrial design combine to produce a rugged protective enclosure for devices
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • Junction box for branch conduits
  • Precision cast and machined surfaces permit safer wire pulling
  • Securely fastened mounting plates reduce costly call backs
Sub_Brand
Red Dot
Type
Universal
Width_2
10.0000
