Thomas & Betts Thomas & Betts RB484
Thomas & Betts RB484
Kirby Risk #: 2061290
UPC: 78621081829, 786210818290, 30786210818291
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

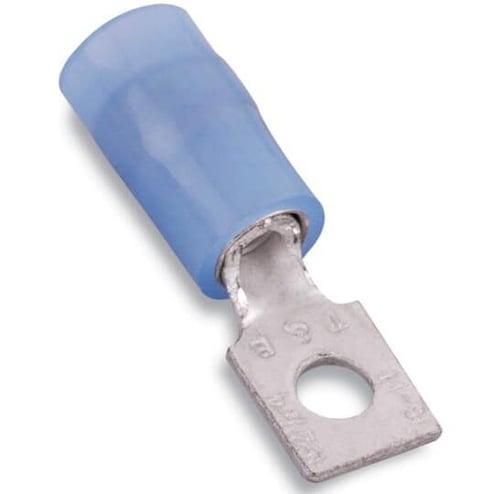

Nylon Insulated Rectangular Ring Terminal, Length 1.015 Inches, Width .237 Inches, Bolt Hole #6, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
Modified Industry Description
TERMINAL
AD Description
Sta-Kon® RB484 RB Series Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.015 in L, Brazed/Overlapped Seam Barrel, Copper, Blue
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Blue
|
| Conductor Size |
16 to 14
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Package_Quantity |
1000
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
#6
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
