Greenlee Greenlee 504
Greenlee 504
Kirby Risk #: 2058913
UPC: 78331023665, 783310236658, 00783310236658
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Greenlee
Description
Industry Description

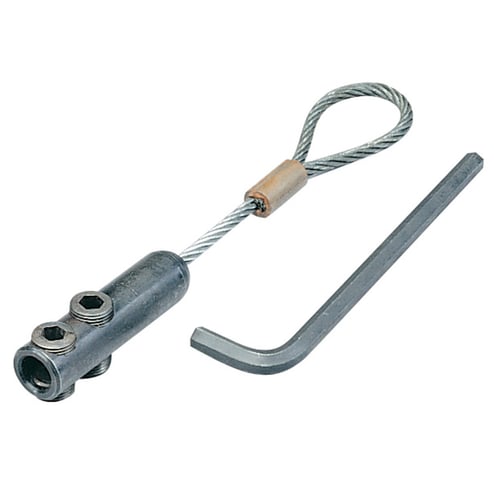

Set screw clamp pulling grip. 1750 pound maximun rated capacity. Use to pull in 2" (50.8 mm) or larger conduit. Type of pull: light and medium. Type of grip: Flexible eye 1/4" (6.3 mm) diameter galvanized steel aircraft cable connected to 2 cable receptacles with 5/8" (15.9 mm) diameter opening and 2 clamping set screws. Select pulling grips with a maximum-rated capacity that meets or exceeds the cable puller's maximum pulling force. Minimum cable diameter is 3/8".
Modified Industry Description
UNIT WIRE GRIP
AD Description
Greenlee® 504 Short Set Screw Clamp Cable Pulling Grip, 3/8 in, 3250 lb, Galvanized Steel
Specifications
| Application |
Short Set Screw Clamp pulling grip for light and medium pulls in 2" conduit or larger.
|
|---|---|
| Brand Name |
Greenlee
|
| Cable_Size |
3/8
|
| Capacity |
6500 LB (28.900 KN)
|
| Country of Origin |
US
|
| Label_Description |
SET SCREW CLAMP-TYPE PULLING GRIP
|
| Material |
Galvanized Steel
|
| Package_Quantity |
1
|
| Special Features |
|
| Sub_Brand |
Greenlee
|
| Type |
Short Set Screw Clamp
|
