Panduit Panduit LDPH10IW6-A


Description

Industry Description

Tamper resistant two-piece latching surface raceway. Supplied with pre-punched mounting holes and factory applied adhesive tape. Available in 6', 8', and 10' lengths, Off White, PVC, Length 6.00 ft, Width 1.52 in.

Modified Industry Description

LDPH10 Hinged, 2-piece Power Rated

AD Description

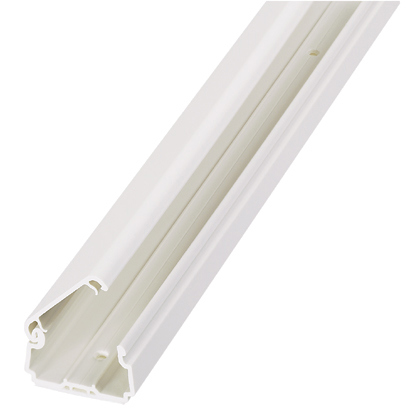

Panduit® Pan-Way® LDPH10IW6-A Power Rated Channel Tamper-Resistant Non-Metallic Raceway, 6 ft L x 1.52 in W x 0.86 in H, 1 Channel, PVC

Vendor Description

LDPH non-metallic Series is a power rated, single channel, pre-assembled 2-piece hinged cover design surface raceway. It shall be suitable for use in applications up to 600 VAC, shall include adhesive backing and shall be made of impact-resistant material with a smooth finish that shall not scratch, peel or corrode. The raceway shall include an assortment of bend radius and standard fittings that complement the offering to help route, protect and conceal power or low voltage cabling. LDPH raceway shall be available in three sizes and four standard colors that shall be optimized for use with the Panduit® Pan-Net® communication system.

Specifications

Application
Pan-Way ® LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes
Color
Off-White
Country of Origin
USA
Finish
Smooth
Length1
6
Material
PVC
Mounting_Type
Surface
Series
LDPH
Special Features

  • 1 in bend radius fittings
  • Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings and perfect solution
  • Full length adhesive strip allows easy tool-free installation and works well for temporary mounting adhesive backing
  • Highly tamper-resistant difficult for untrained personnel to access the raceway, provides maximum security for communication cabling and maximum safety for power cabling
  • Mounting holes in base eliminates need for drilling holes in raceway and speeds installation
  • Non-slip liner cover, keeps cover from sliding when in an open position particularly useful when product is used in vertical applications
  • Pre-assembled 2-piece hinged cover design cover remains open without use of tools or fixtures, speeds placement of cables into the raceway
  • Supplied with pre-punched mounting holes and factory applied adhesive tape
  • Tamper-resistant 2-piece latching surface raceway
Standard
Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
Sub_Brand
Pan-Way?®
Temperature_Rating
0 to 50
Type
Power Rated Tamper Resistant
Voltage Rating
600
