Arlington Arlington DBVMA1W


Description

Industry Description

Low profile inbox for foam wall systems. Adjusts from 2-3/4" to 5". White paintable weatherproof while in use cover.

Modified Industry Description

WHT IN BOX ADJUSTABLE

AD Description

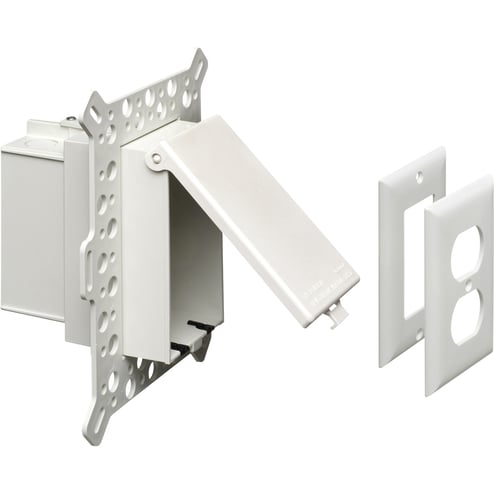

Arlington InBox™ DBVMA1W 1-Piece Low Profile Electrical Box With Weatherproof While-In-Use Extra Duty Cover, Plastic, 22 cu-in, 1 Gang, 9.058 in L x 7.012 in W x 5.16 in H

Vendor Description

Recessed electrical box with weatherproof-in use extra duty cover. Adjustable to fit any foam board thickness. Non-metallic cover and base. Accepts most single gang wiring devices and uses standard indoor wallplates or a GFCI cover plate. Box and white cover are textured/ paintable UV rated plastic for long outdoor life.

Specifications

Application
For AC - MCI-A - HCF steel and aluminum cable
Brand Name
Arlington
Color
White
Country of Origin
USA
Finish
Textured/Painted
Material
Plastic
Size
1-Gang
Special Features

  • Adjustable flange depth fits any foam board thickness or custom finish in concrete block and stucco applications
  • Adjusts for finishes from 1/4 to 2-1/2 in THK in walls from 2-3/4 in to 5 in D
  • InBox™ 1-piece assembly replaces the installation of an electrical box and bubble cover assembly
  • Install option cover is removable for easier device installation
  • Installs in the wall, so less of It shows outside
  • No gaskets required
Standard
UL and CSA
Sub_Brand
Arlington
Type
1-Piece Low Profile
