Southwire Southwire 3/0-3/0-3/0-1/0 CU SERV
Southwire 3/0-3/0-3/0-1/0 CU SERV
Kirby Risk #: 2053185
UPC: 03288627140, 032886271403, 0032886271403, 00032886271403
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
3/0-3/0-3/0-1/0 CU SERVICE ENTRANCE TYPE SER PVC JACKET 500 FT
Modified Industry Description
ENT.TYPE SER
AD Description

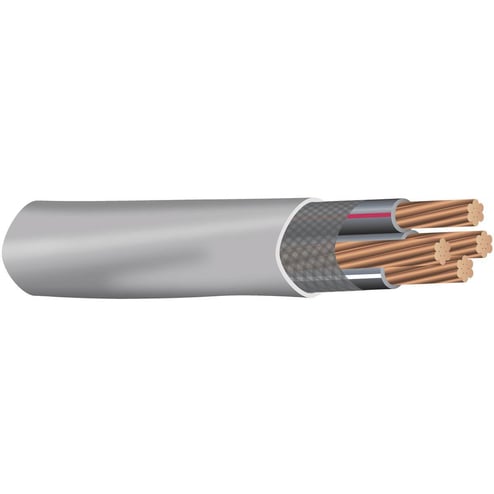

Southwire® 27084301 Type SER Service Entrance Cable With Ground Wire, 600 VAC, (4) 3/0-3/0-3/0-1/0 AWG Stranded Copper Conductors, 500 ft Reel L, Gray
Vendor Description
Southwire® type SE cable is constructed with sunlight resistant type XHHW- 2 conductors or type THHN/THWN conductors. Copper conductors are annealed (soft) copper. Cable assembly plus reinforcement tape are jacketed with sunlight resistant gray polyvinyl chloride (PVC). Available as 1 conductor with a concentric ground, 2 conductor with a round or concentric ground, or 3 conductor with a bare ground. SE cable is jacketed with gray sunlight resistant polyvinyl chloride (PVC).
Specifications
| Amperage Rating |
225
|
|---|---|
| Color |
Gray
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
3/0-3/0-3/0-1/0 AWG
|
| Country of Origin |
USA
|
| Length1 |
500 ft Reel
|
| Number Of Conductors |
4
|
| Outside_Diameter |
1462
|
| Sub_Brand |
Southwire
|
| Temperature_Rating |
90
|
| Type |
Type SER
|
| Voltage Rating |
600
|
