Siemens Siemens 40404-02QG


Description

Industry Description

200A 4J RGLS 1POS LVRBPS MS OH/UG 2GRD

Modified Industry Description

200A 4J RGLS 1POS LVRBPS MS OH/UG

AD Description

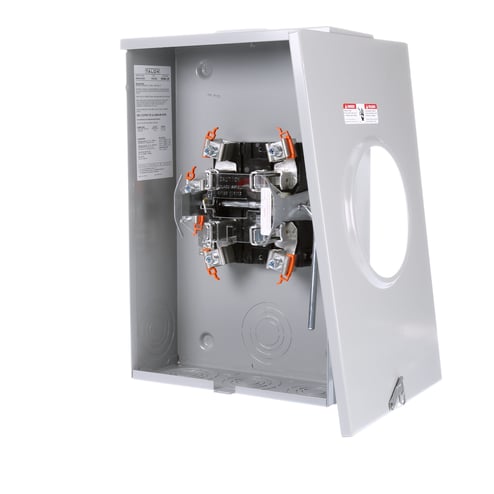

TALON® 40404-02QG Type HQU 1-Position Continuous Duty Meter Socket With Lever Bypass, Coverplate, (2) Lugs, 600 VAC, 200 A, 1 ph Phase, NEMA 3R Enclosure

Specifications

Amperage Rating
200
Brand Name
Siemens
Cable_Entry
Overhead/UnderGround
Country of Origin
MX
Cutout_Size
1X2.750,1X(1,1-1/4,1-1/2,2,2-1/2,3),2X(1/4,1/2),3X(1,1-1/4,1-1/2,2,2-1/2)
Enclosure
Steel
Frequency_Rating
False
Mounting
SURFACE MOUNTING
Number_Of_Cutouts
7
Operating_Temperature
Average Ambient
Phase
1
Size
13.000X19.000X5.200
Special Features

  • 100% rated lever bypass with clamping action on meter
  • Constructed of 16 ga G90 galvanized steel and coated with light gray polyester powder coat finish for maximum corrosion protection
  • Cover cannot be replaced with lever in bypass position
  • Field addable 5th terminal
  • Glass fiber reinforced polyester, high strength arc and track resistant block assembly
  • Latches are made from series 300 stainless steel
  • Lever operated jaw release, moving lever up bypasses meter and releases pressure on meter jaw
  • Plated copper current path
  • Silver brazed meter jaw
  • Terminals are type HQ-4G and HQ-4GU are lay-in type with dome point screw
  • Track resistant polycarbonate insulating safety shield provides added protection from accidental shorts and shocks
Standard
UL
Sub_Brand
Siemens
Terminal
4 Terminals
Type
HQU
Voltage Rating
600
Width_2
40.0000
