3M 3M MNG10-8FLX
3M MNG10-8FLX
Kirby Risk #: 2049290
UPC: 05112858795, 051128587959, 00051128587959
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

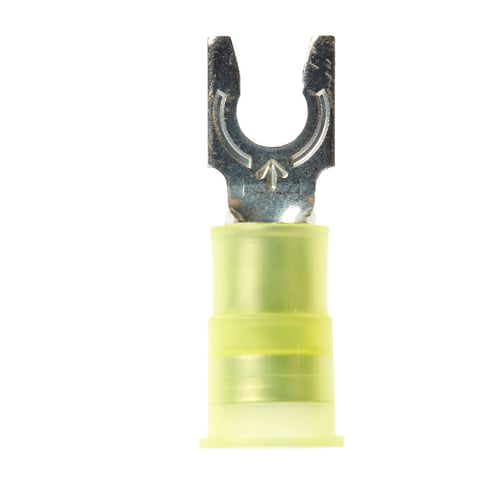

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
Nylon Insulated w/Insulation Grip
AD Description
Scotchlok™ 051128-58795 Locking Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Barrel, ETP Copper, Yellow
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Yellow
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
USA
|
| Label_Description |
LOCKING FORK NYLON INSULATED, 50/BOTTLE
|
| Material |
ETP Copper
|
| Operating_Voltage |
50 per bottle
|
| Package_Quantity |
50
|
| Special Features |
|
| Standard |
UL and CSA
|
| Stud_Size |
#8
|
| Sub_Brand |
3M
|
| Terminal_Size |
12 - 10 AWG
|
| Type |
Locking
|
| Voltage Rating |
600 to 1000 VAC
|
