Allen-Bradley Allen-Bradley 1492-JDG3PTP
Allen-Bradley 1492-JDG3PTP
Kirby Risk #: 2048750
UPC: 66207305863, 662073058632, 00662073058632, 10662073058639
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

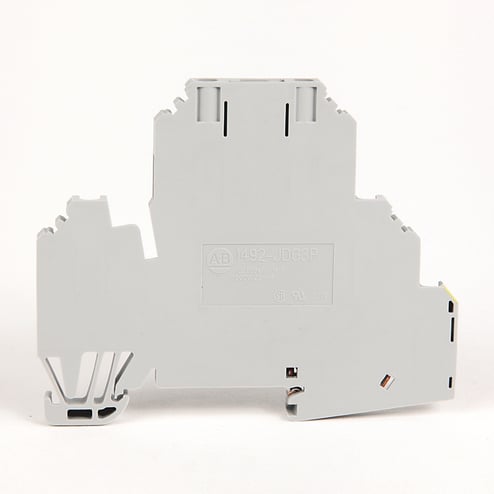

Terminal Block, Screw Connection, Two Level Plug-in Style - Two Circuit with Test Plug Socket and Ground Connection, 5.1 x 80.2 x 65.9mm (0.20 x 3.20 x 2.63 in), 1 Pole, Gray, VOLTAGE RATING UR - 300V AC/DC, CSA - 300V AC/DC, IEC - 500V A
Specifications
| Amperage Rating |
UR - 20A, CSA - 20A, IEC - 24A
|
|---|---|
| Color |
Gray (Standard)
|
| Conductor Size |
UR - #24...12 AWG, CSA - #30...12 AWG, IEC - 2.5 mm²
|
| Country of Origin |
RO
|
| Length1 |
0.1598
|
| Special Features |
Screw Connection,Two Level Plug-in Style -Two Circuit Test Plug Socket,Ground Connection,1 Pole,Gray,Pkg. Qty. of 50
|
| Standard |
CCC, CE, CSA, KC, UL
|
| Sub_Brand |
1492
|
| Type |
IEC Screw Grounding Term Blk
|
| Voltage Rating |
UR 300V AC/DC, CSA - 300V AC/DC, IEC - 500V AC/DC
|
