Thomas & Betts Thomas & Betts ST150-473


Description

Industry Description

Star Teck aluminum jacketed cable fitting. Hub size of 1-1/2 inch. Range over jacket from 1.900-2.187 inches.

Modified Industry Description

AL FITTING- TECK CABLE- 1 1/2 IN

AD Description

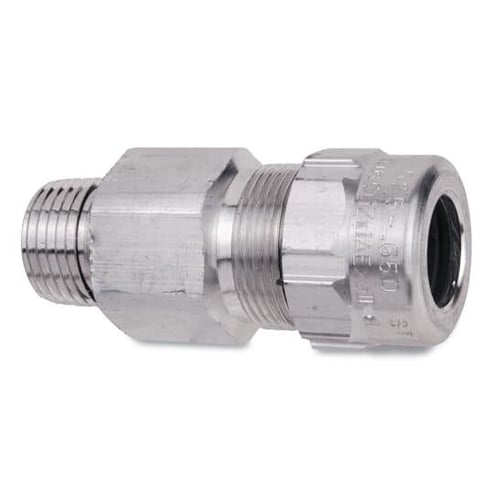

T&B® Fittings ST150-473 Star Teck® Teck Cable Fitting, 1-1/2 in Trade, 1.9 to 2.187 in Cable Openings, Aluminum

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Color
Silver
Country of Origin
CA
Dimensions
3.26 in Dia
Length1
8.8000
Material
Aluminum
Series
Star Teck®
Size
1-1/2
Special Features

  • 1.790 to 2.107 in cable range over armor
  • Dependable grounding power grip grounding ring is non-magnetic stainless steel
  • Dependable service stainless steel retaining ring, withstands corrosive environments, non-magnetic
  • Easy installation and exclusive power grip
  • Easy to install in tight spaces low profile gland nut fits tight spaces
  • Form a mechanical grip and water and/or oil resistant seal for cord
  • Has grooves for screwdriver installation and flats for a wrench, durable and reusable with funnel entry for easy cable insertion
  • Overlapping sizes minimize possibility of mismatched cables and fittings in the field
  • Provide grounding continuity of cable armor
  • Provides 360 deg long term dependable grounding, it makes immediate contact with the cable
  • Provides a grip that's high up on the cable-not on the first convolution-so strip length and cutting of cable are not critical
  • Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
  • Watertight-tapered neoprene bushing, cone-shaped to provide a secure, tight fit while eliminating cupping or water in vertical installations
Standard
UL E38947, CSA 23086, CSA 4484
Sub_Brand
T&B Fittings
Temperature_Rating
-40 to 194
Type
Teck Cable Fittings
