Panduit Panduit PNL-4-C

Name: Panduit PNL-4-C
Brand: Panduit
SKU: 2047211
Price: 6.65 USD
Availability: InStock

Panduit PNL-4-C

Kirby Risk #: 2047211

UPC: 07498363252, 074983632527, 30074983632528, 00074983632527

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

One-hole, copper, single barrel, straight tongue lug, #14 SOL - #4 STR, 1/4 (6.4mm) stud hole.

Modified Industry Description

4 - 14 AWG 1/4 IN 1 HOLE CU MECH SINGLE LUG

AD Description

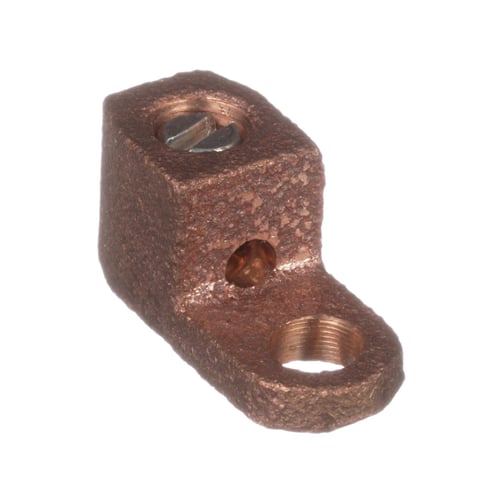

Panduit® PNL-4-C Single Barrel Mechanical Lug, 14 to 4 AWG Solid/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Cast Copper

Brand Name	Panduit
Conductor_Range_Main_Primary	#14 SOL - #4 STR
Conductor Size	14 to 4
Country of Origin	IND
Finish	Other
Material	Cast Copper
Number_Of_Holes	1
Number_Of_Mounting_Holes	1
Number_Of_Ports	NA
Package_Quantity	1
Special Features	Cast from high strength corrosion resistant copper alloy to provide premium electrical and mechanical performance Compact design saves space Corrosion resistant copper alloy, compact design, inspection window and high strength connection Flat bottom allows for complete contact with mounting surface Inspection window to visually assure full conductor insertion Plated steel set screw provides high strength, durable electrical contact between conductor and connector Wide wire range taking capability minimizes inventory requirements
Standard	UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
Stud_Size	1/4
Sub_Brand	Pan-Lug?„?
Temperature_Rating	90
Type	Single Barrel
Voltage Rating	600
