Panduit Panduit LCDX4-14A-L
Panduit LCDX4-14A-L
Kirby Risk #: 2046541
UPC: 07498342368, 074983423682, 30074983423683, 00074983423682
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description
Two-hole, flex lug, #4 AWG wire, 1/4 stud hole, .63 hole spacing.
Modified Industry Description
Copper Compression Lug, 2 Hole, #4
AD Description

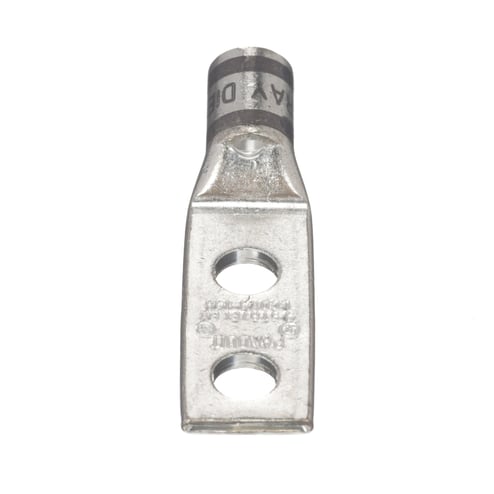

Panduit® Pan-Lug™ LCDX4-14A-L 2-Hole Lug Compression Connector With Window Lug, 4 AWG/5 to 3 AWG, Die Code: P29, 1/4 in Stud, Tin Plated Copper
Specifications
| Brand Name |
Panduit
|
|---|---|
| Color |
Gray
|
| Conductor Material |
Copper
|
| Conductor Size |
4
|
| Country of Origin |
MEX
|
| Material |
Tin-Plated Copper
|
| Mounting |
5/8
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Size |
#4 Class B, C, G, H, I, K, M and #5, #4, #3 DLO
|
| Special Features |
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
|
| Standard |
C22.2 No. 65-13, 486A-486B File #E52164
|
| Stud_Size |
1/4
|
| Sub_Brand |
Panduit
|
| Type |
Type LCDX
|
| Voltage Rating |
35k
|
