ERICO Erico LJCEG2Q


Description

Industry Description

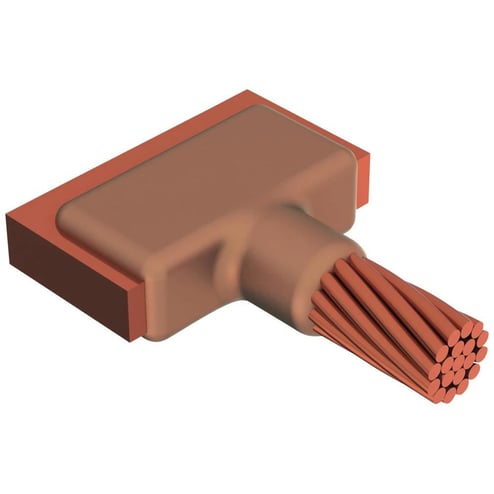

Cable to Lug or Busbar, LJ, 1/4" x 1 1/2" and wider, 4/0 Concentric, 1 3/4" Min Center to Center Weld Distance

Modified Industry Description

MOLD,CABLE TO BUS/LUG,HORZ TEE

AD Description

ERICO® CADWELD® LJCEG2Q Type LJ Weld Metal Mold, 4/0 AWG Stranded Conductor, 1-1/2 in W x 1/4 in THK Rod, Cable to Lug/Busbar Connection, Graphite

Vendor Description

nVent ERICO® CADWELD® graphite molds are designed and engineered for thousands of connection styles and conductor combinations. Installers can be easily trained to make nVent ERICO® CADWELD® exothermic connections. Connections can be visually inspected. Mold families LA and LE can be used with straight or offset lugs.

Specifications

Application
Facility Electrical Protection; Lightning Protection; Solar Power; Telecom; Utility; Wind Power
Conductor Size
4/0 AWG Stranded
Country of Origin
US
Length1
38.0000
Material
Graphite
Special Features

  • Forms a permanent, low resistance connection
  • Horizontal tee with cable tap
  • NVent ERICO® CADWELD® exothermic connections are rated with the same current capacity as the conductor
  • Portable installation equipment with no external source of power required
  • Provides a molecular bond
Standard
UL, CUL
Sub_Brand
ERICO
Type
Type LJ
