Hubbell Hubbell ATU1000CRP
Hubbell ATU1000CRP
Kirby Risk #: 2038840
UPC: 78358539247, 783585392479, 00783585392479
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls, OccupancySensors, Adaptive TechnologyUltrasonic Ceiling Sensor, 1000 Square FeetCoverage, With Relay
Modified Industry Description
AT US OCCSENS, CEILING, 1000 SQ',
AD Description

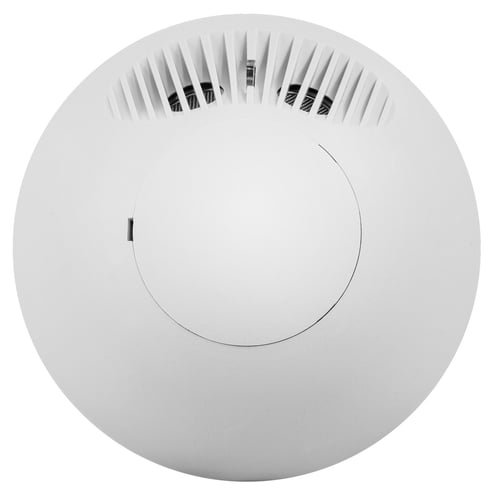

Wiring Device-Kellems H-MOSS® ATU1000CRP Adaptive Dual Technology Ceiling Mount Occupancy Sensor With Photocell and Isolated Relay, 24 VDC, Ultrasonic Sensor, 1000 sq-ft Coverage, 180 deg, Ceiling Mount
Specifications
| Application |
Compatible with most LED and CFL
|
|---|---|
| Brand Name |
Hubbell
|
| Color |
White
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Functions |
Wire Leads
|
| Humidity |
0% to 95% non-condensing relative humidity
|
| Indicator |
Ultrasonic= Green LED
|
| Load |
Load is a function of the control unit
|
| Material |
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
|
| Mounting |
Screw Mount
|
| Operating_Cycles |
6k
|
| Operating_Temperature |
32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
|
| Sensitivity |
Adaptive 0 to 100%
|
| Sensor |
Adaptive Ultrasonic
|
| Special Features |
|
| Standard |
ASHRAE 90.1 Compliant;cULus Listed To UL244A
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Supply_Voltage |
24 DC
|
| Target_Size |
People in
|
| Type |
Ceiling and Wall Mount Sensors
|
| Voltage Rating |
24
|
