Bussmann Bussmann 16377-2


Description

Industry Description

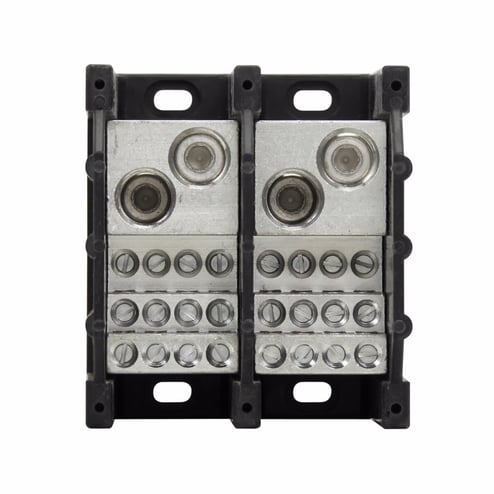

570A 600V Distribution 2 Pole Power Terminal Block

Modified Industry Description

TERMINAL BLOCK 2P 570A 600V

AD Description

Bussmann 16377-2 Barrier Power Distribution Block, 600 VAC/VDC, 570 A, 2 Poles, 4 AWG to 300 kcmil Wire, Thermoplastic

Vendor Description

Bussmann series UL Recognized power distribution blocks offer a variety of lineside and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).

Specifications

Amperage Rating
570
Application
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name
Bussmann
Color
Black
Conductor Size
(2) 4 AWG To 300 KCMIL (Copper/Aluminum) Line, (12) 14 To 4 AWG (Copper) or 12 To 4 AWG (Aluminum) Load
Country of Origin
MX
Finish
Tin Plated
Material
Thermoplastic
Number_Of_Poles
2
Operating_Voltage
2
Size
3.60 In Length X 4.00 In Width X 3.32 In Height
Special Features

  • (1) screw primary, (12) quick connect secondary
  • (12) 1/4 in quick connect
  • (2) 4 AWG to 300 kcmil copper/aluminum line, (12) 14 to 4 AWG copper, 12 to 4 AWG aluminum load wire
  • 4 AWG to 300 kcmil copper/aluminum line, 14 to 4 AWG copper, 12 to 4 AWG aluminum load connection
  • Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
  • Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
  • Molded thermoplastic base, tin plated aluminum connector
  • Rated for dual wire port application to increase the possible number of lineside and loadside connections
  • SMD/SMT style mounting
Standard
UL, CSA
Sub_Brand
Cooper Bussmann
Type
Barrier
Voltage Rating
600
