3M 3M 11011


Description

Industry Description

The 3M™ Scotchlok™ Connectors 20000 Series can be used with either copper or aluminum conductors. These aluminum connectors feature color coded end caps for identification. Contact aid provided in connector is compatible with poly/EPR insulations. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. (UL 486B Listed)

Modified Industry Description

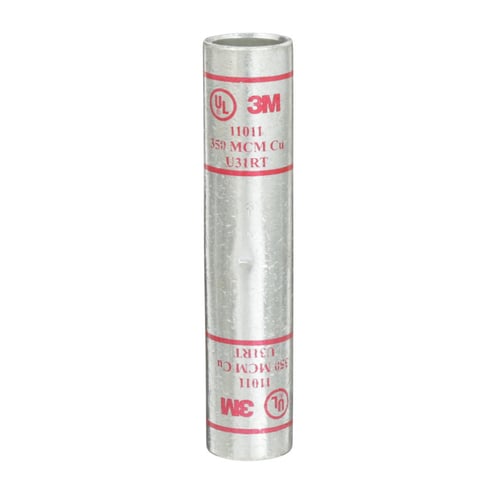

Copper Long Barrel Splice 350 MCM

AD Description

Scotchlok™ 054007-12881 11000 Non-Insulated Long Barrel Compression Connector, 350 kcmil Stranded Copper Conductor, 4.13 in L, Copper Plated

Vendor Description

3M™ Scotchlok™ connectors and tools are engineered to work together to achieve consistently superior performance in the field.

Specifications

Application
Copper Conductor Only
Brand Name
3M
Color
Red
Conductor Type
Stranded Copper
Conductor Size
350 kcmil
Country of Origin
CL
Finish
Electro-Tin Plated
Label_Description
3M(TM) SCOTCHLOK(TM) COPPER LONG-BARREL CONNECTOR 11011, RED, 350 KCMIL, 3 PER CASE
Material
Copper Plated
Package_Quantity
3
Special Features

  • 3/Case
  • Butt splice, inline, individual openings terminal style
  • Chamfered ends and an integral center cable stop ensure simplicity
  • Color-coded printing for easy connector identification
  • Constructed of one-piece, seamless, high-conductivity copper and electro-tin plated for corrosion resistance
  • Crimp termination
  • Long barrel ensures a secure fit and offers reliable performance
  • Simple installation using readily available tools
Standard
UL
Sub_Brand
3M
Temperature_Rating
105 DEG C
Type
Non-Insulated Long Barrel
Voltage Rating
Up to 35 kVAC
