Thomas & Betts Thomas & Betts 60248


Description

Industry Description

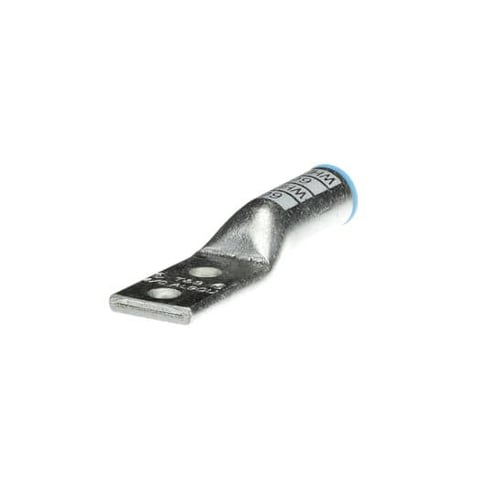

Aluminum Two-Hole Lug, Long Barrel, Blind End, Max 35kV, 4/0 AWG Wire, 3/8 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Code 66H, Die Color Code White

Modified Industry Description

CONN,CPRSN,2-BOLT

AD Description

Color-Keyed® 60248 2-Hole Compression Lug, 4/0 AWG Aluminum/Copper Conductor, Die Code: 66H, 3/8 in Stud, Aluminum

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Brand Name
Thomas & Betts
Cable_Size
4/0 AWG
Color
White
Conductor Material
Aluminum - Copper
Conductor Size
4/0
Country of Origin
MX
Insulation
None
Material
Aluminum
Number_Of_Holes
2
Package_Quantity
5
Special Features

  • Filled with oxide inhibitor compound
  • For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
  • For aluminum and copper concentric conductors and compact code aluminum strands
  • High conductivity wrought aluminum construction
  • Tin plated finish
Standard
UL E9809
Stud_Size
3/8
Sub_Brand
Color-Keyed
Temperature_Rating
90
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
