Appleton Appleton BC100-A
Appleton BC100-A
Kirby Risk #: 2034516
UPC: 78138174331, 781381743310, 0068785574331, 00781381743310
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
IMC/Rigid Mogul Conduit Body, Access Opening Side, Configuration C, Cover Type Epoxy Powder Coated Copper Free Aluminum, Hub Location Straight, Number of Hubs 2, Hub Size 1 Inch, Size 9.81 Inch L x 2.38 Inch W x 2.75 Inch H, Installation Threaded, Material Epoxy Powder Coated Copper Free Aluminum Body, Neoprene Gasket, Stainless Steel Screw, Form Type Mogul, Approval UL 514B/E2527, CSA C22.2, Used On IMC/Rigid Conduit, Applicable Standard NEC/CEC, NEMA FB-1, Capacity 31 Cu Inch
Modified Industry Description
1 IN C TYPE MOGUL CONDUIT BODY ALUM
AD Description

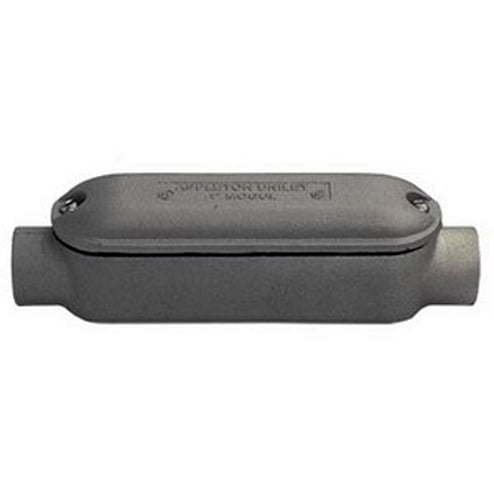

Appleton® Mogul UNILETS™ BC100-A NEC 8x Type C Conduit Outlet Body With Cover and Gasket, 1 in Hub, 31 cu-in, Aluminum, Epoxy Powder Coated
Vendor Description
Appleton® NEC 8x Mogul Conduit Outlet Bodies, Covers and Gaskets feature larger body sizes to facilitate the pulling of large and heavy conductors. They have specially designed raised cast covers that provide additional wiring area. These conduit bodies are ideal for pulling straight, 45 or 90 deg angle turns and/or making taps and splices.
Specifications
| Brand Name |
Appleton
|
|---|---|
| Configuration |
C
|
| Country of Origin |
MX
|
| Finish |
Epoxy Powder Coated
|
| Form |
Mogul
|
| Hub_Size |
1
|
| Material |
Aluminum
|
| Special Features |
|
| Trade_Size |
1
|
| Type |
Type C
|
