Panduit Panduit PH18-14R-Q

Name: Panduit PH18-14R-Q
Brand: Panduit
SKU: 2031800
Price: 2.18 USD
Availability: InStock

Panduit PH18-14R-Q

Kirby Risk #: 2031800

UPC: 07498381803, 074983818037, 30074983818038, 00074983818037

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Heat Shrink Ring Terminal 22 Â– 18 AWG, 1/4" stud size.

Modified Industry Description

Ring Term, Heat Shrink, 22-18 AWG,

AD Description

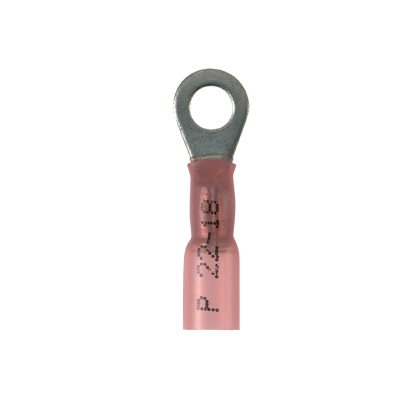

Panduit® Pan-Term® PH18-14R-Q PH Series Insulated Loose Piece Ring Terminal, 22 to 18 AWG Conductor, 1.24 in L, Brazed Seam Barrel, Copper, Red

Brand Name	Panduit
Color	Red
Connection	Standard
Conductor Size	22 to 18
Country of Origin	USA
Enclosure	ring shaped
Finish	Tin Plated
Insulation	Heat Shrink
Material	Copper
Mounting	5/16" (.3125)
Package_Quantity	25
Size	1/4
Special Features	300 deg F shrink temperature Brazed seam protects terminal barrel from splitting during the crimp process Heat shrink installation is completed with a standard heat gun Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications Heat shrinkable polyolefin insulated with hot melt sealant Ring tongue design assures a secure connection in high vibration applications Standard barrel configuration
Standard	cULus Listed 587H E52164, CSA Certified LR31212
Stud_Size	1/4
Sub_Brand	Panduit
Type	Insulated Loose Piece
Voltage Rating	600
