3M 3M 560N
3M 560N
Kirby Risk #: 2026772
UPC: 05400709513, 054007095132, 00054007095132
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

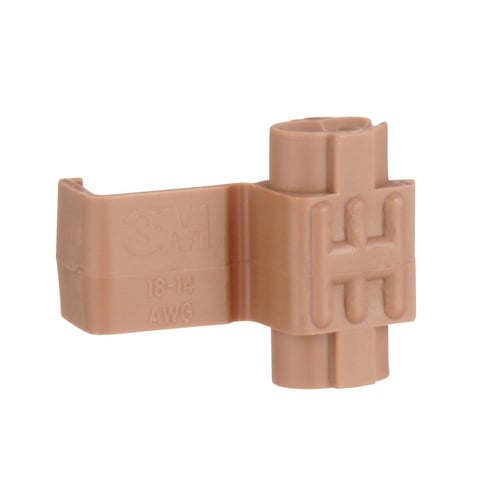

3M™ Scotchlok™ Insulation Displacement Connector 560N is a double run connector for parallel splicing. It electrically connects two run (through) wires while insulating the connection. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.
Modified Industry Description
IDC Connector (Bulk)
AD Description
Scotchlok™ 054007-09513 Flame Retardant Electrical IDC, 18 to 16 AWG/14 AWG Stranded
Vendor Description
Create lasting electrical functionality in automotive applications with help from 3Mâ„¢ Scotchlokâ„¢ 560N IDC Double Run Connectors. The flame-retardant material keeps your connections safe in a variety of environments, and the connectors prevail against temperatures as high as 221 degrees F (105 degrees C), making them suitable for both general electrical jobs and industrial situations. They are UL Listed, CSA Certified and RoHS 2011/65/EU Compliant for reliable quality and safe integration into existing installations.
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Brown
|
| Conductor Size |
18 - 16 AWG / 14 AWG Stranded
|
| Country of Origin |
USA
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) ELECTRICAL IDC 560N-BULK, DOUBLE RUN, FLAME RETARDANT
|
| Package_Quantity |
5000
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
221 deg F
|
| Type |
Flame Retardant
|
| Voltage Rating |
600 VAC
|
