Ocal Ocal GUAT24-G


Description

Industry Description

PVC Double-Coated Conduit Outlet Box for Hazardous Locations, GUAT Type - T Shape, Pipe Size 3/4 Inch/21 Metric, Box is Ductile Iron with Zinc Plating, Cover is Die Cast Aluminum, Cover Opening 2.00 Inch/50.80 Millimeters, Gray

Modified Industry Description

3/4 OCAL GUAT24 GRAY

AD Description

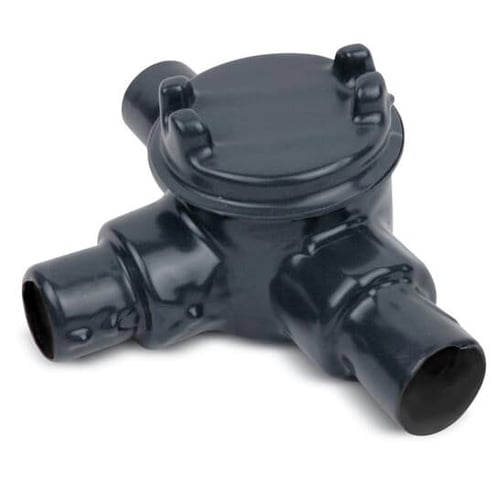

Ocal® GUAT24-G Explosionproof T-Shape Conduit Outlet Box, 3/4 in, 2 in Cover Opening, 5.3 cu-in Capacity, PVC Coated/Zinc Plated

Vendor Description

GUA series conduit boxes are installed in hazardous areas to protect conductors, act as pull and splice boxes, provide access to conductors for maintenance and future system changes, act as mounting outlets for fixtures (with proper covers) or change conduit direction.

Specifications

Application
For Use in Hazardous Locations to Provide Access to Conductors for Pulling, Splicing, Maintenance and Future Changes/upgrades
Color
Gray
Country of Origin
US
Finish
Zinc Plated
Length1
13.6500
Material
Ductile Iron
Series
GUAT
Size
3/4
Special Features

  • All hubs have a minimum of 5 full threads, integral bushing and Pressure sealing sleeves
  • Explosion proof, dust ignitionproof, raintight
  • Grade 60-45-10 ductile iron bodies and cast aluminum covers
  • Join 2 or more pieces of conduit long run
  • Mounting outlets for fixtures with proper covers
  • Nominal 0.002 in (2 mil) blue urethane coating on both interior and exterior and nominal 0.04 in (40 mil) PVC coating bonded to exterior
  • O-ring gasket provided to assure NEMA 4 rating
  • Provide access to conductors for maintenance and future system changes
  • To change direction in rigid conduit systems
Sub_Brand
Ocal
Type
T-Shape
