Thomas & Betts Thomas & Betts 2B350X
Thomas & Betts 2B350X
Kirby Risk #: 2021327
UPC: 78378640011, 783786400119, 30783786400110
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Copper Type 2BX - One piece Two-Bolt Connector without spacer for Wire Range Main: 4/0 Str. - 350 kcmil Tap: 4 Sol. - 350 kcmil , Bolt Size 3/4
Modified Industry Description
TWO BOLT CLAMP
AD Description

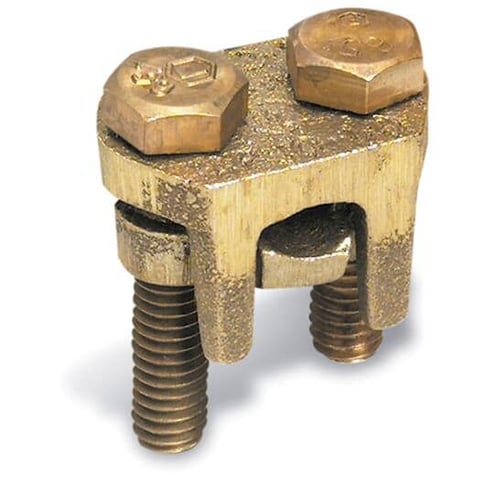

Blackburn® 2B350X 2BX 1-Piece Two-Bolt Connector, 4/0 AWG to 350 kcmil Solid/Stranded Copper Conductor, 3/4 x 1/2 in Bolt, Copper
Vendor Description
Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Specifications
| Bolt_Size |
3/4 x 1/2
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Conductor_Range_Main_Primary |
4/0 Str. - 350 kcmil
|
| Conductor_Range_Tap_Secondary |
4 Sol. - 350 kcmil
|
| Conductor Type |
Solid/Stranded Copper
|
| Conductor Size |
4/0 AWG to 350 kcmil
|
| Country of Origin |
MUL
|
| Material |
Copper
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Blackburn
|
| Tap_Size |
4 AWG to 350 kcmil
|
| Type |
1-Piece
|
