NSI NSi BS400T
NSI BS400T
Kirby Risk #: 2020486
UPC: 66238100200, 662381002006, 00662381002006
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Dual Range Lug One 600 MCM - 4 AWG, Two 250 MCM - 1/0 AWG - 1 Count Dual Range Lugs are set screw connectors that will accept either one or two wires. Made of 6061T-6 aluminum alloy. Electro-pin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 Volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.
Modified Industry Description
600-4 250-1/0 DUAL RANGE
AD Description

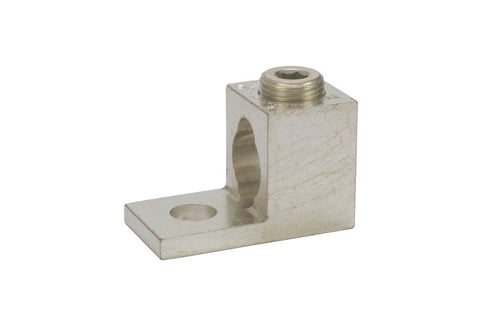

NSI BS400T Dual Rated Mechanical Terminal Lug, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Aluminum/Copper Conductor, 9/16 in Stud, 6061-T6 Aluminum Alloy
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
9/16
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
(1) 600 MCM-4 AWG (2) 250 MCM-1/0 AWG
|
| Country of Origin |
USA
|
| Finish |
Aluminum
|
| Material |
Aluminum
|
| Number_of_Conductors_Ports_Main_Primary |
2
|
| Number_Of_Mounting_Holes |
1
|
| Number_Of_Ports |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL486B
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Aluminum Dual Range Lug
|
| Voltage Rating |
600
|
