Burndy Burndy YA31LNT38
Burndy YA31LNT38
Kirby Risk #: 2018978
UPC: 78181001856, 781810018569, 00781810018569
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

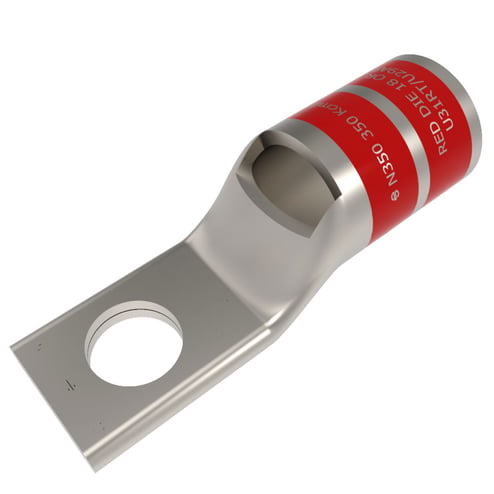

Copper Compression Lug, 1 Hole w/ Inspection Window, 350 kcmil, 3/8" Stud, Short Barrel, Tin Plated,tongue width:.96".
Modified Industry Description
CU COMPR LUG 1 HOLE 350 AWG 3/8 STUD SHORT
AD Description
BURNDY® HYLUG YA31LNT38 YA-L-NT 1-Hole Compression Lug With Inspection Window, 350 kcmil Stranded Copper Conductor, Die Code: 18, 3/8 in Stud, Copper
Vendor Description
BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Color |
Red
|
| Conductor Size |
350
|
| Material |
Copper
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Type |
1-Hole
|
